Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFSI000909081R0M05INDUCTOR POWER |
2,645 | - |
|
Datasheet | AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 34 A | 31A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.366" L x 0.354" W (9.30mm x 9.00mm) | 0.335" (8.50mm) |
|
PF0581.473NLFIXED IND 47UH 1.1A 166 MOHM SMD |
1,196 | - |
|
Datasheet | PF0581NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±10% | 1.1 A | 1.1A | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
AFSI00121109100M05INDUCTOR POWER |
3,405 | - |
|
Datasheet | AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 13 A | 17.5A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
|
|
AFSI001211091R0M05INDUCTOR POWER |
1,018 | - |
|
Datasheet | AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 40 A | 45A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
|
PA2243.332NLTIND PWR MOLDED 3.3UH 16.8A |
4,978 | - |
|
Datasheet | PA2243.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 16.8 A | 25A | Unshielded | 7.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|

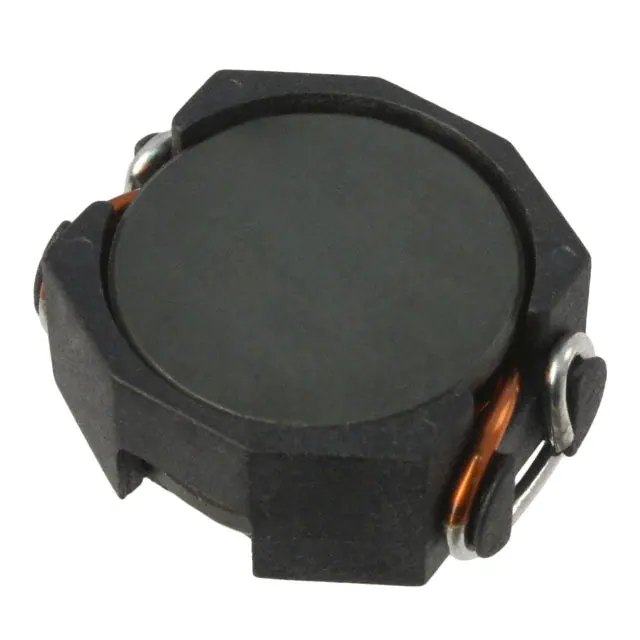

PB2020.681NLFIXED IND 680NH 30A 1.8 MOHM SMD |
2,048 | - |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 680 nH | ±20% | 30 A | 70A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PGL7252HLTPOWER IND BEAD |
1,809 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.484" L x 0.315" W (12.30mm x 8.00mm) | 0.236" (6.00mm) |
|
|
PGL7253HLTPOWER IND BEAD |
3,544 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.720" L x 0.315" W (18.30mm x 8.00mm) | 0.236" (6.00mm) |
|
|
PGL7254HLTPOWER IND BEAD |
1,889 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 40 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.959" L x 0.315" W (24.35mm x 8.00mm) | 0.236" (6.00mm) |
|
|
P0151NLTFIXED IND 220UH 810MA 673MOHM SM |
4,329 | - |
|
Datasheet | Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 220 µH | - | 810 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
