Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.333ANLTFIXED IND 33UH 12A 37 MOHM SMD |
783 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

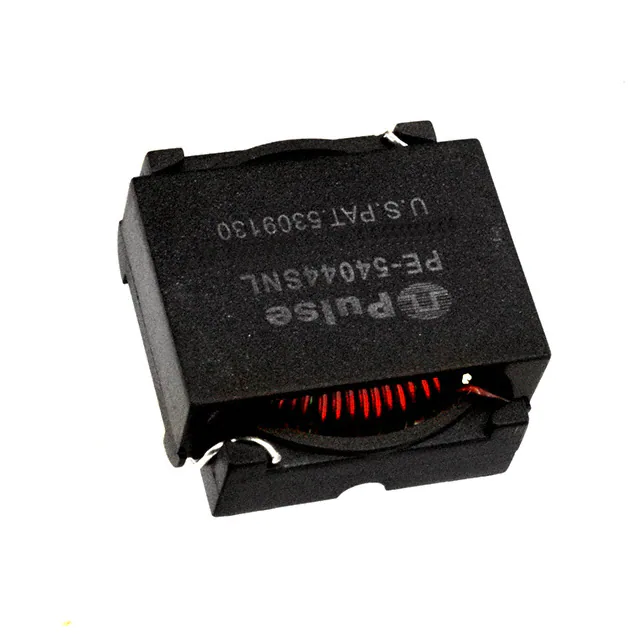

PE-54044SNLFIXED IND 77UH 3A 80 MOHM SMD |
1,103 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

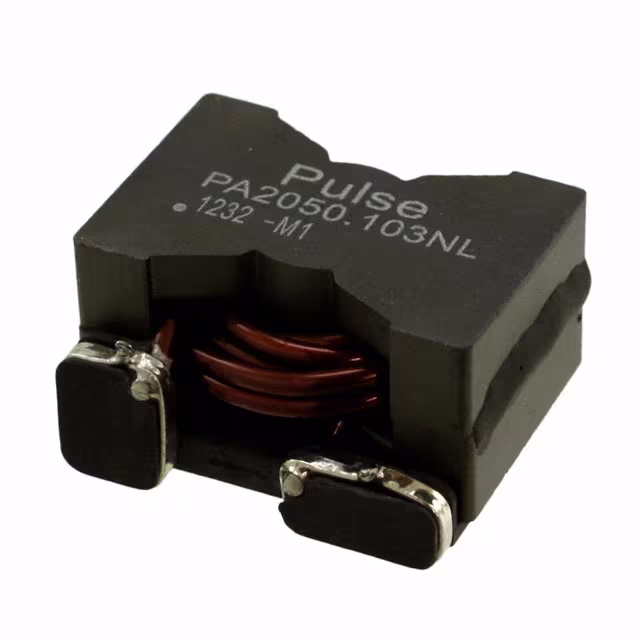

PA2050.103NLFIXED IND 10.2UH 12.5A 5.8 MOHM |
744 | - |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 16A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
P0850NLFIXED IND 23UH 5A 26 MOHM TH |
666 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53120NLFIXED IND 1MH 950MA 240 MOHM TH |
477 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

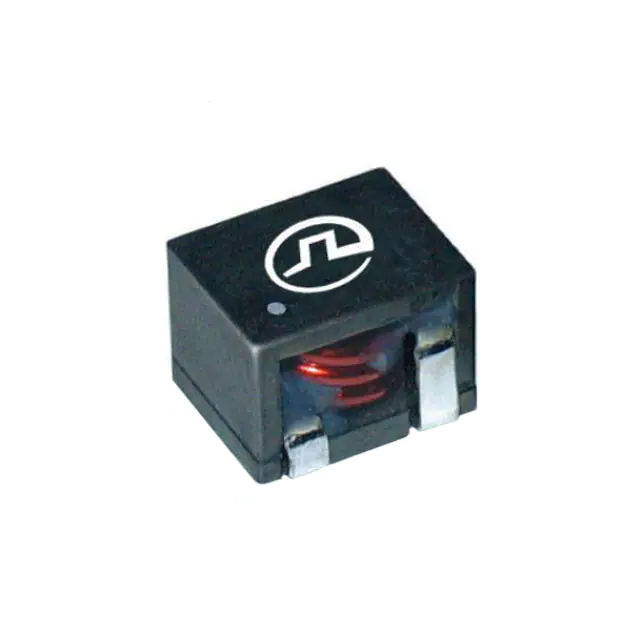

PG1096.223NLTPULSE XFMR 19.5UH |
304 | - |
|
Datasheet | PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 19.5 µH | ±20% | 17 A | 19A | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
PA4349.332ANLTFIXED IND 3.3UH 49A 1.75MOHM SMD |
1,047 | - |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 47 A | 37A | Shielded | 1.75mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.222ANLTFIXED IND 2.2UH 58A 1.25MOHM SMD |
544 | - |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 52 A | 43A | Shielded | 1.25mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.152ANLTFIXED IND 1.5UH 62A 1.15MOHM SMD |
741 | - |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.823ANLTFIXED IND 82UH 12A 34.2 MOHM SMD |
557 | - |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10 A | 7.7A | Shielded | 34.2mOhm Max | - | 1.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
