Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0006.102NLTFIXED IND 1UH 20A 1.75 MOHM SMD |
944 | - |
|
Datasheet | PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 20A | Unshielded | 1.75mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
PA5119.901NLTFIXED IND 900NH 14A 4.6 MOHM SMD |
2,024 | - |
|
Datasheet | PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 900 nH | ±10% | 14 A | 28A | Shielded | 4.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
PE-53700NLFIXED IND 5.2UH 15.4A 6.2MOHM SM |
3,582 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 5.2 µH | - | 15.4 A | - | Unshielded | 6.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|

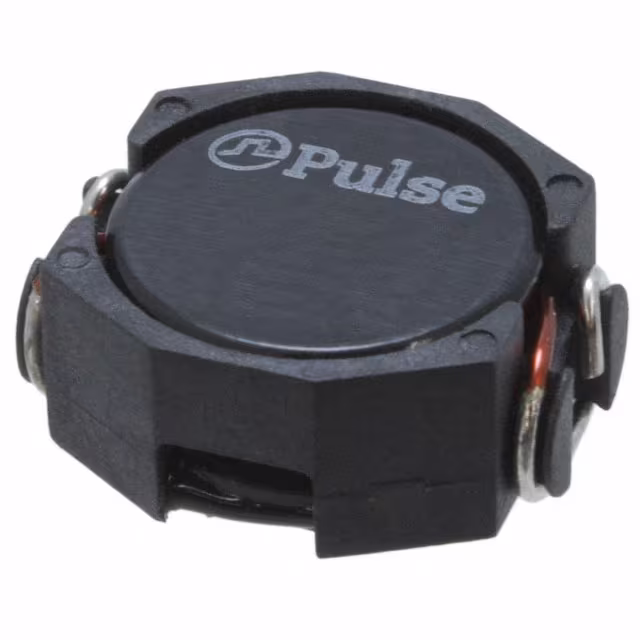

PB2020.223NLTFIXED IND 22UH 8.1A 20 MOHM SMD |
978 | - |
|
Datasheet | PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 8.1 A | 13A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

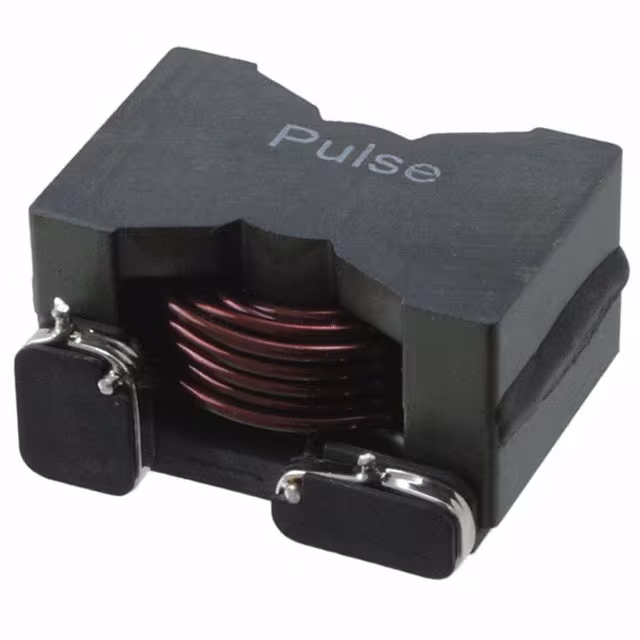

PA2050.583NLFIXED IND 57.8UH 5A 34.5MOHM SMD |
9,388 | - |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 57.8 µH | ±10% | 5 A | 6.2A | Shielded | 34.5mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PE-53820NLFIXED IND 115UH 670MA 400MOHM TH |
921 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
P0849NLFIXED IND 33UH 5A 47 MOHM TH |
1,080 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 47mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|

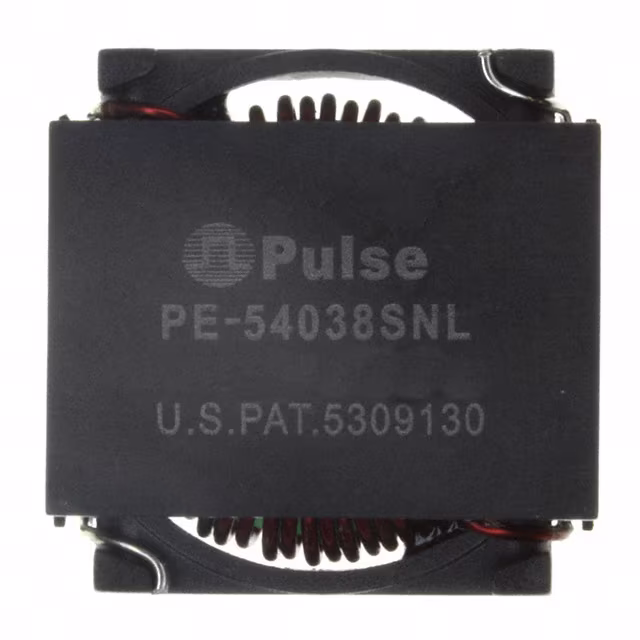

PE-54038SNLTFIXED IND 77UH 2.7A 90 MOHM SMD |
2,115 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PE-92111KNLFIXED IND 40UH 4A 27 MOHM TH |
744 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-52629NLFIXED IND 680UH 850MA 1.5 OHM TH |
130 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
