Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

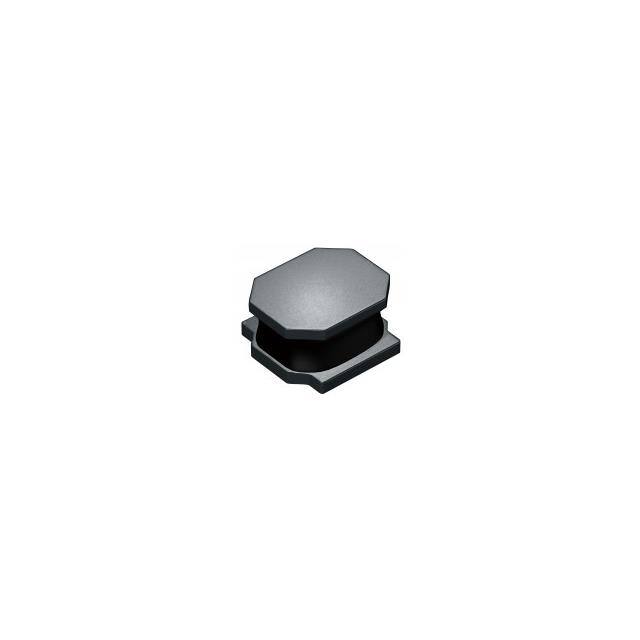

LLXBD6060YEL2R3NFIXED IND 2.3UH 3.5A 27.3MOHM SM |
3,393 | - |
|
Datasheet | LLXB | 2424 (6060 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.3 µH | ±30% | 3.5 A | 6A | Shielded | 21mOhm | - | 60MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LLXBD6060YEL220MFIXED IND 22UH 1.5A 149.5MOHM SM |
3,024 | - |
|
Datasheet | LLXB | 2424 (6060 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 1.9A | Shielded | 115mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LLXBD6060YEL470MFIXED IND 47UH 1.1A 286 MOHM SMD |
3,943 | - |
|
Datasheet | LLXB | 2424 (6060 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 220mOhm | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXPD2020MKT3R3M0GFIXED IND 3.3UH 900MA 272.4 MOHM |
4,857 | - |
|
Datasheet | LCXP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 900 mA | 1.25A | Unshielded | 227mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXPD2020MKT1R0N0GFIXED IND 1UH 1.65A 87.6MOHM SMD |
2,125 | - |
|
Datasheet | LCXP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.65 A | 2.2A | Unshielded | 73mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXPD2020MKT2R2M0GFIXED IND 2.2UH 1.2A 154.8 MOHM |
3,057 | - |
|
Datasheet | LCXP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.6A | Unshielded | 129mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXPD2020KKT1R0N0GFIXED IND 1UH 1.6A 96 MOHM SMD |
3,909 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.6 A | 1.55A | Unshielded | 80mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXPD2020MKT4R7M0GFIXED IND 4.7UH 750MA 390MOHM SM |
1,376 | - |
|
Datasheet | LCXP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 1.1A | Unshielded | 325mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXPD2020MKT1R5N0GFIXED IND 1.5UH 1.4A 120MOHM SMD |
2,153 | - |
|
Datasheet | LCXP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.4 A | 1.8A | Unshielded | 100mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXND2020MKT4R7M0GFIXED IND 4.7UH 910MA 241MOHM SM |
4,727 | - |
|
Datasheet | LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 900mA | Unshielded | 241mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
