Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
N08DPB821KFIXED IND 820UH 330MA 3.1OHM SMD |
1,741 | - |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 µH | ±10% | 330 mA | - | Unshielded | 3.1Ohm Max | - | 2.4MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.197" (5.00mm) |
|
|
NS10145T151MNVVFIXED IND 150UH 860MA 420MOHM SM |
3,169 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 860 mA | 1.11A | Shielded | 420mOhm Max | - | 4.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

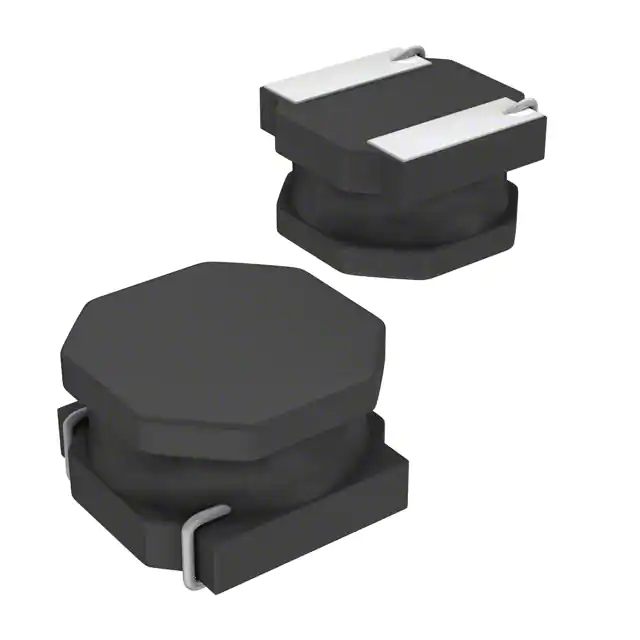

MDMK2020TR47MMVFIXED IND 470NH 46 MOHM SMD |
3,427 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | - | - | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MDMK2020TR68MMVFIXED IND 680NH 58 MOHM SMD |
3,836 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | - | - | Shielded | 58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LSRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD |
2,531 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 9.6mOhm Max | - | 82.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

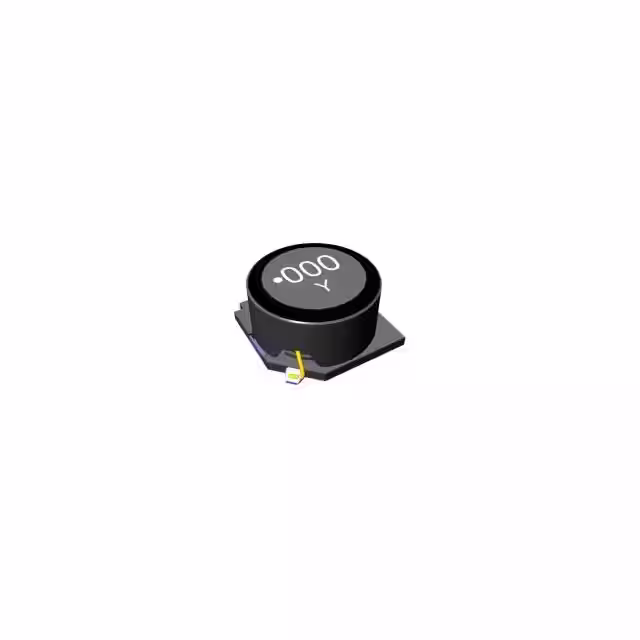

LSRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM |
1,691 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 37.2mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD |
3,863 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM |
1,241 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 173mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM |
1,619 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL470MMYFIXED IND 47UH 2.78A 69 MOHM SMD |
3,370 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.78 A | 3.34A | Shielded | 57.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
