Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLRNJ12565GL221MMYFIXED IND 220UH 1.18A 327.6 MOHM |
2,994 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 273mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM |
3,860 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 16.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL150MMYFIXED IND 15UH 4.33A 28.44 MOHM |
1,318 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.84A | Shielded | 23.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL101MMYFIXED IND 100UH 1.81A 147.6 MOHM |
2,010 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 148mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL150MMYFIXED IND 15UH 4.33A 28.44 MOHM |
1,099 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.84A | Shielded | 28.5mOhm Max | - | 14.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL4R2NMYFIXED IND 4.2UH 5.91A 15.12 MOHM |
2,463 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.2 µH | ±30% | 5.91 A | 10.15A | Shielded | 15.2mOhm Max | - | 41.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL101MMYFIXED IND 100UH 1.81A 147.6 MOHM |
4,018 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 123mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

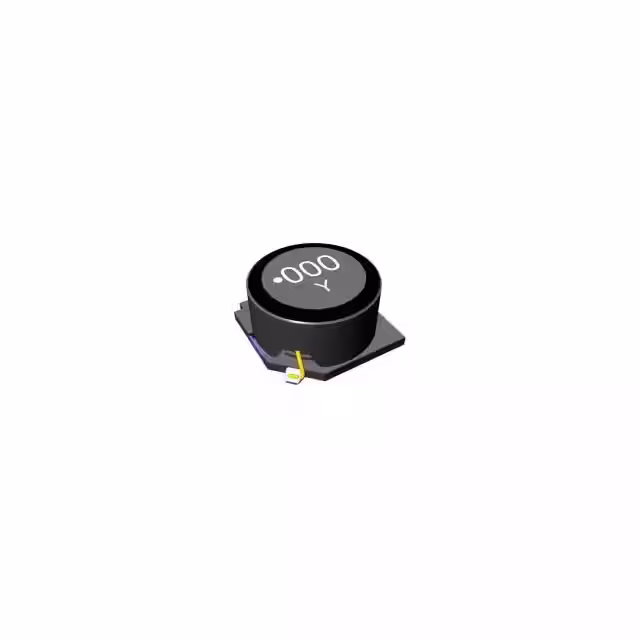

LLRNJ12565GL100MMYFIXED IND 10UH 4.75A 23.88 MOHM |
3,704 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 19.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL100MMYFIXED IND 10UH 4.75A 23.88 MOHM |
1,466 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 19.9mOhm | - | 15.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL4R2NMYFIXED IND 4.2UH 5.91A 15.12 MOHM |
3,218 | - |
|
Datasheet | LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.2 µH | ±30% | 5.91 A | 10.15A | Shielded | 12.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
