Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg "LK2125R33M-T")
|
LK2125R33M-TFIXED IND 330NH 250MA 400MOHM SM |
2,300 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R39K-TFIXED IND 390NH 200MA 450MOHM SM |
4,742 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 390 nH | ±10% | 200 mA | - | Unshielded | 450mOhm Max | 25 @ 25MHz | 135MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R47K-TFIXED IND 470NH 200MA 500MOHM SM |
3,810 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±10% | 200 mA | - | Unshielded | 500mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56K-TFIXED IND 560NH 150MA 550MOHM SM |
3,823 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±10% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56M-TFIXED IND 560NH 150MA 550MOHM SM |
2,688 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68K-TFIXED IND 680NH 150MA 600MOHM SM |
4,972 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±10% | 150 mA | - | Shielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68M-TFIXED IND 680NH 150MA 600MOHM SM |
3,794 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±20% | 150 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,45mm.jpg "LK2125R82K-T")
|
LK2125R82K-TFIXED IND 820NH 150MA 650MOHM SM |
3,057 | - |
|
Datasheet | LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±10% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 100MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

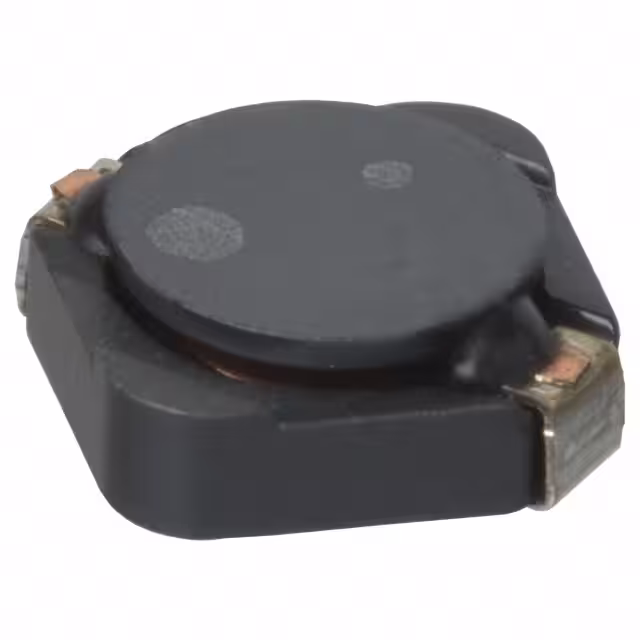

NP04SZB3R3NFIXED IND 3.3UH 2A 60 MOHM SMD |
2,903 | - |
|
Datasheet | N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±30% | 2 A | 2.2A | Shielded | 60mOhm Max | - | 30MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
AQ10515NJ-TFIXED IND 15NH 360MA 450MOHM SMD |
4,804 | - |
|
Datasheet | AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 15 nH | ±5% | 360 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 2.3GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
