Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "HKQ0603S6N8H-T")
|
HKQ0603S6N8H-TFIXED IND 6.8NH 190MA 550MOHM SM |
4,410 | - |
|
Datasheet | HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 6.8 nH | ±3% | 190 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 4.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603S7N5H-TFIXED IND 7.5NH 200MA 510MOHM SM |
3,302 | - |
|
Datasheet | HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 7.5 nH | ±3% | 200 mA | - | Unshielded | 510mOhm Max | 13 @ 500MHz | 4.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

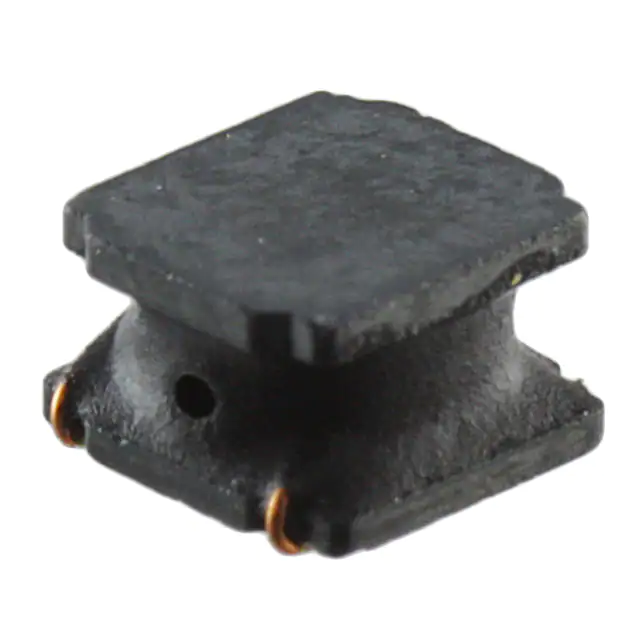

NRG4026T100MFIXED IND 10UH 1.3A 85 MOHM SMD |
2,281 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 1A | Shielded | 85mOhm | - | 26MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T220MFIXED IND 22UH 900MA 165MOHM SMD |
4,500 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 610mA | Shielded | 165mOhm | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T2R3NFIXED IND 2.3UH 1.97A 40MOHM SMD |
2,657 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.3 µH | ±30% | 1.97 A | 2.1A | Shielded | 40mOhm | - | 96MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T470MFIXED IND 47UH 650MA 300MOHM SMD |
2,786 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 650 mA | 410mA | Shielded | 300mOhm | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T4R7MFIXED IND 4.7UH 1.6A 55 MOHM SMD |
4,957 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.45A | Shielded | 55mOhm | - | 46MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T6R6MFIXED IND 6.6UH 1.5A 65 MOHM SMD |
3,431 | - |
|
Datasheet | NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.6 µH | ±20% | 1.5 A | 1.3A | Shielded | 65mOhm | - | 33MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
-BR-Series.jpg "BRL2515T1R0M")
|
BRL2515T1R0MFIXED IND 1UH 1.35A 91 MOHM SMD |
2,681 | - |
|
Datasheet | BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.35 A | 1.5A | Unshielded | 91mOhm Max | - | 160MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
BRL2515T1R5MFIXED IND 1.5UH 1.15A 100MOHM SM |
2,780 | - |
|
Datasheet | BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.15 A | 1.2A | Unshielded | 100mOhm | - | 130MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
