Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "DFE322520FD-4R7M=P2")
|
DFE322520FD-4R7M=P2FIXED IND 4.7UH 2A 98 MOHM SMD |
11,170 | - |
|
Datasheet | DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 3.4A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|

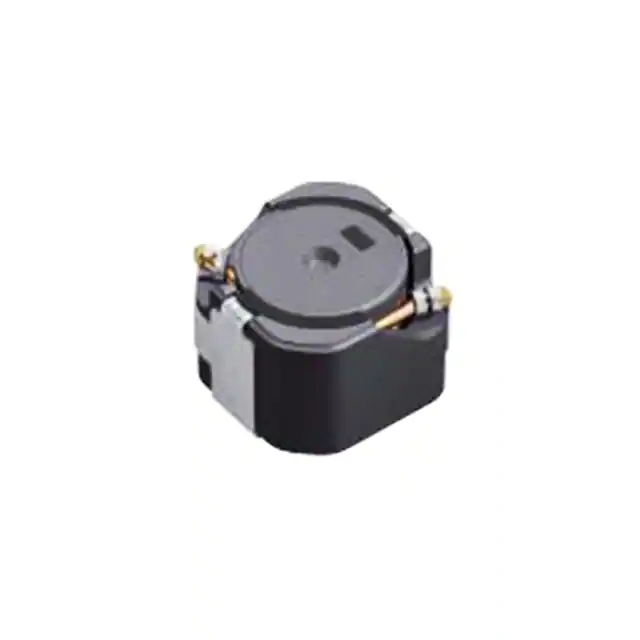

CLF5030NIT-101M-DFIXED IND 100UH 400MA 1.056 OHM |
4,838 | - |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 400 mA | 560mA | Shielded | 1.056Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

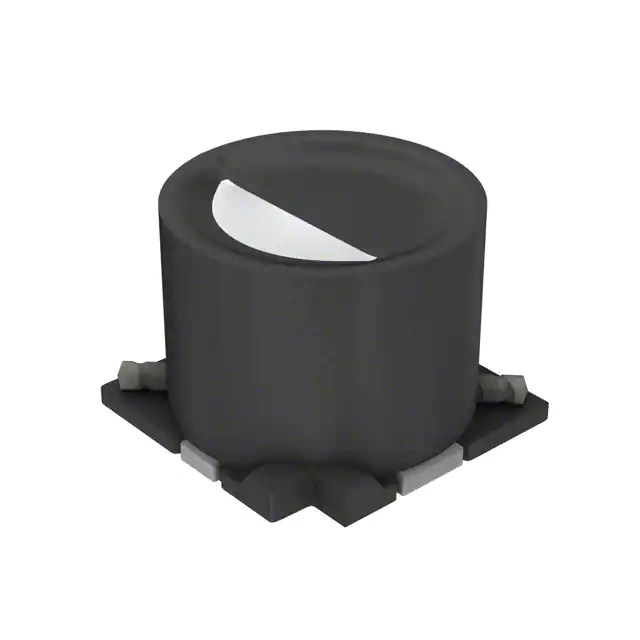

SLF7055T-220M1R7-3PFFIXED IND 22UH 2A 77.2 MOHM SMD |
15,321 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2 A | 1.7A | Shielded | 77.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
CD54NP-100MCFIXED IND 10UH 1.44A 100MOHM SMD |
13,646 | - |
|
Datasheet | CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
SLF7045T-100M1R3-PFFIXED IND 10UH 1.78A 43.2MOHM SM |
5,851 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.78 A | 1.3A | Shielded | 43.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CD54NP-101KCFIXED IND 100UH 520MA 700MOHM SM |
16,079 | - |
|
Datasheet | CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 520 mA | - | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
SRR0745A-102MFIXED IND 1MH 200MA 4.1 OHM SMD |
84,867 | - |
|
Datasheet | SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 200 mA | 240mA | Shielded | 4.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|

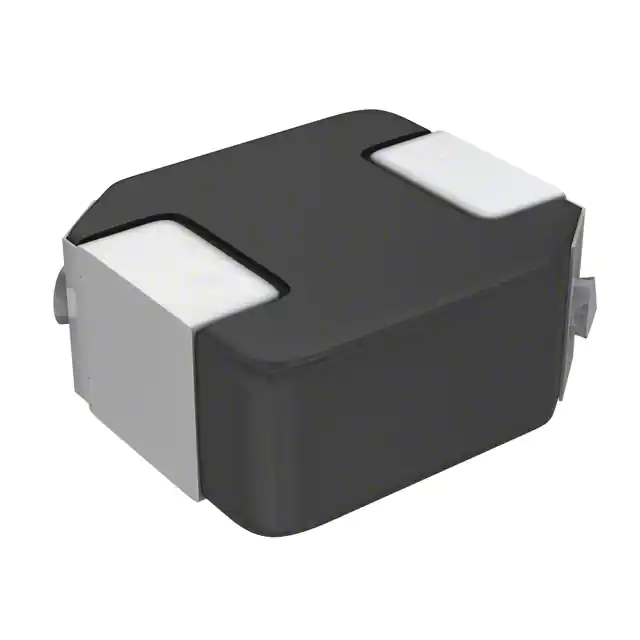

SPM6530T-4R7MFIXED IND 4.7UH 5.6A 39.4MOHM SM |
6,601 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 5.6 A | 6.2A | Shielded | 39.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|

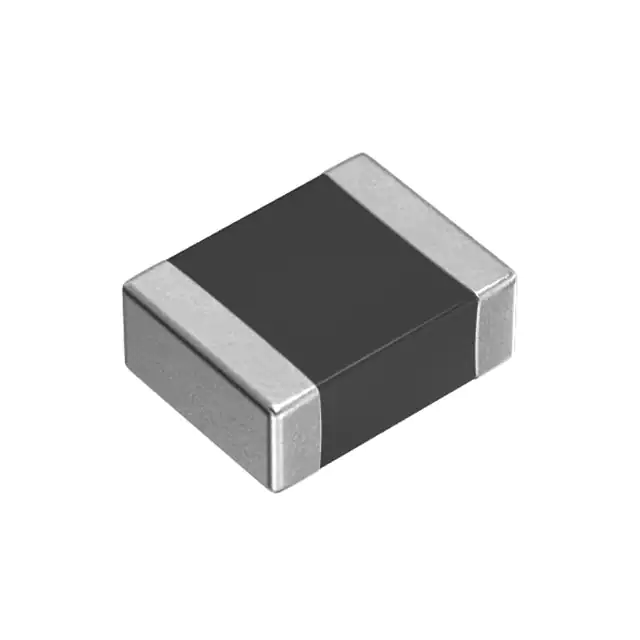

TFM322512ALVA4R7MTAAFIXED IND 4.7UH 1.9A 151MOHM SMD |
5,585 | - |
|
Datasheet | TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRR0745A-330MFIXED IND 33UH 1.35A 150MOHM SMD |
2,117 | - |
|
Datasheet | SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.35 A | 1.45A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
104CDMCCDS-220MCFIXED IND 22UH 5A 66 MOHM SMD |
71,111 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 5 A | 6.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-1R5MCFIXED IND 1.5UH 19A 4.2MOHM SMD |
68,359 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 19 A | 29A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-470MCFIXED IND 47UH 3.2A 145MOHM SMD |
40,988 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 3.2 A | 4.3A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P3M220KVNFIXED IND 22UH 2.7A 140.8MOHM SM |
13,071 | - |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 2.7 A | 4.3A | Shielded | 140.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
104CDMCCDS-100MCFIXED IND 10UH 7.5A 30 MOHM SMD |
11,762 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 7.5 A | 10A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
HCMA0703-330-RFIXED IND 33UH 1.8A 242 MOHM SMD |
2,393 | - |
|
Datasheet | HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 1.8 A | 2A | Shielded | 242mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M100KVNFIXED IND 10UH 3.6A 78.1MOHM SMD |
1,495 | - |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 3.6 A | 6.1A | Shielded | 78.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
CR75NP-470KCFIXED IND 47UH 1.1A 180 MOHM SMD |
71,482 | - |
|
Datasheet | CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | - | Unshielded | 180mOhm Max | - | 13MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SPM6530T-2R2MFIXED IND 2.2UH 8.2A 19 MOHM SMD |
8,350 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 8.2 A | 8.4A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M330KVNFIXED IND 33UH 2.1A 226.6MOHM SM |
2,679 | - |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 2.1 A | 3A | Shielded | 226.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
