Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812ES102JFIXED IND 1MH 30MA 40 OHM SMD |
2,000 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

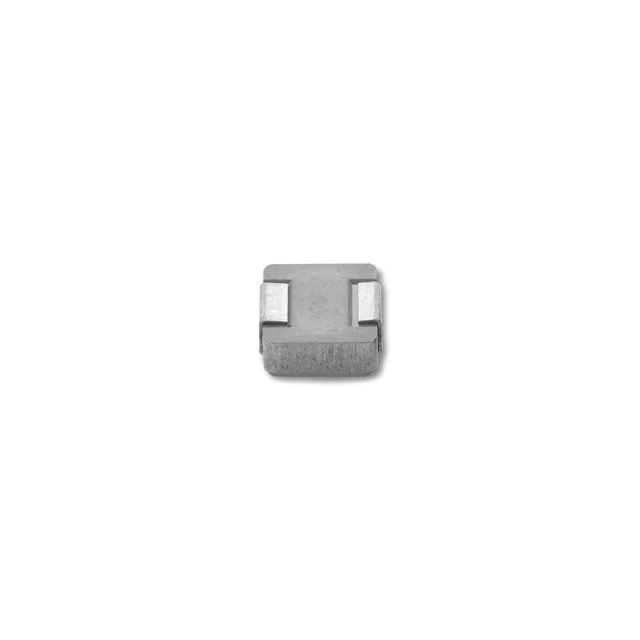

IHLP2020CZET100M01FIXED IND 10UH 2.5A 164MOHM SMD |
1,750 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 2.5 A | 4A | Shielded | 164mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZET150M01FIXED IND 15UH 1.9A 265MOHM SMD |
1,894 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | 1.9 A | 2.5A | Shielded | 265mOhm Max | - | 13.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLE2020CDERR68M51IHLE-2020CD-51 .68 20% ER E3 |
1,985 | - |
|
Datasheet | IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 11.3 A | 9.5A | Shielded | 9.74mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
IHLE2020CDERR33M5AIHLE-2020CD-5A .33 20% ER E3 |
2,200 | - |
|
Datasheet | IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 15.8 A | 11.8A | Shielded | 5.34mOhm Max | - | 127MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
IHLE2020CDERR33M51IHLE-2020CD-51 .33 20% ER E3 |
2,200 | - |
|
Datasheet | IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 15.8 A | 11.8A | Shielded | 5.34mOhm Max | - | 127MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
IHLP1212ABERR56M11FIXED IND 560NH 5.1A 22 MOHM SMD |
5,975 | - |
|
Datasheet | IHLP-1212AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 5.1 A | 6.7A | Shielded | 22mOhm Max | - | 135MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
IHLE2525CDERR68M5AIHLE-2525CD-5A .68 20% ER E3 |
1,000 | - |
|
Datasheet | IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 16.5 A | 17A | Shielded | 5.76mOhm Max | - | 56.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|
IHLP6767DZER1R0M01FIXED IND 1UH 31.5A 2.66MOHM SMD |
250 | - |
|
Datasheet | IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 31.5 A | 58A | Shielded | 2.66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
|
IHLP6767DZER8R2M01FIXED IND 8.2UH 11.5A 17.6 MOHM |
250 | - |
|
Datasheet | IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 11.5 A | 20A | Shielded | 17.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
