Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHA103EBFIXED IND 250UH 1.8A 280 MOHM TH |
190 | - |
|
Datasheet | IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.8 A | - | Unshielded | 280mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | - |
|
IHLP6767GZERR56M11FIXED IND 560NH 61A 1.05MOHM SMD |
200 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 61 A | 66A | Shielded | 1.05mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER1R0M11FIXED IND 1UH 55.5A 1.27MOHM SMD |
246 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55.5 A | 32A | Shielded | 1.27mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHD3EB472LFIXED IND 4.7MH 400MA 3.79OHM TH |
132 | - |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±15% | 400 mA | 260mA | Unshielded | 3.79Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
IHSM5832ER5R6LFIXED IND 5.6UH 7A 24 MOHM SMD |
500 | - |
|
Datasheet | IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±15% | 7 A | 2.6A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
IH03BQ500KFIXED IND 50UH 5.6A 50 MOHM TH |
150 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|

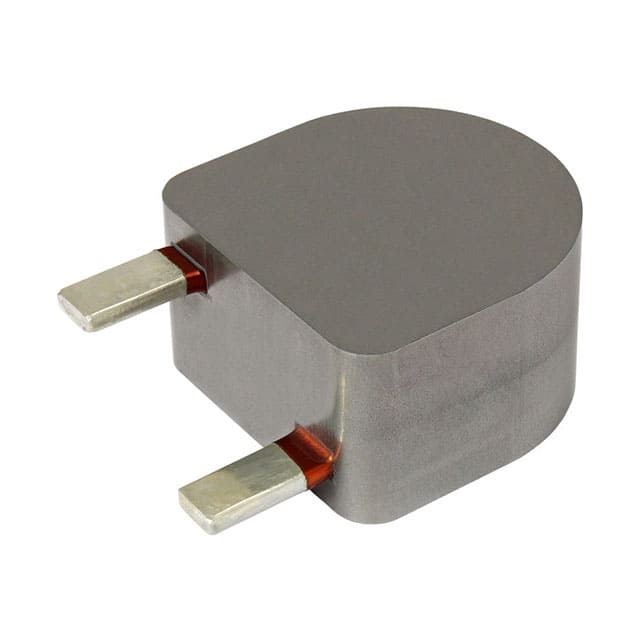

IHXL1500VZEB1R5M5AFIXED IND 1.5UH 178A 0.26MOHM TH |
196 | - |
|
Datasheet | IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 1.5 µH | ±20% | 178 A | - | Shielded | 0.26mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
ILSB1206ER120KFIXED IND 12UH 15MA 1.05 OHM SMD |
3,000 | - |
|
Datasheet | ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Shielded | 1.05Ohm Max | 45 @ 2MHz | 26MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
IRF24ER470KFIXED IND 47UH 205MA 2.3 OHM TH |
5,000 | - |
|
Datasheet | IRF-24 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 205 mA | - | Unshielded | 2.3Ohm Max | 50 @ 2.52MHz | 8.5MHz | - | -20°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.276" L (3.00mm x 7.00mm) | - |
-Unshielded-Inductor.jpg "IMC0805ER5N6J01")
|
IMC0805ER5N6J01FIXED IND 5.6NH 600MA 80MOHM SMD |
2,000 | - |
|
Datasheet | IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
