Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE4040DDEW100M5AFIXED IND 10UH 6.5A 0.03306OHM |
386 | - |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
IHLP5050CEERR68M01FIXED IND 680NH 28A 2.5 MOHM SMD |
1,717 | - |
|
Datasheet | IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 28 A | 49A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
IMC1812ER102KFIXED IND 1MH 30MA 40 OHM SMD |
1,500 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

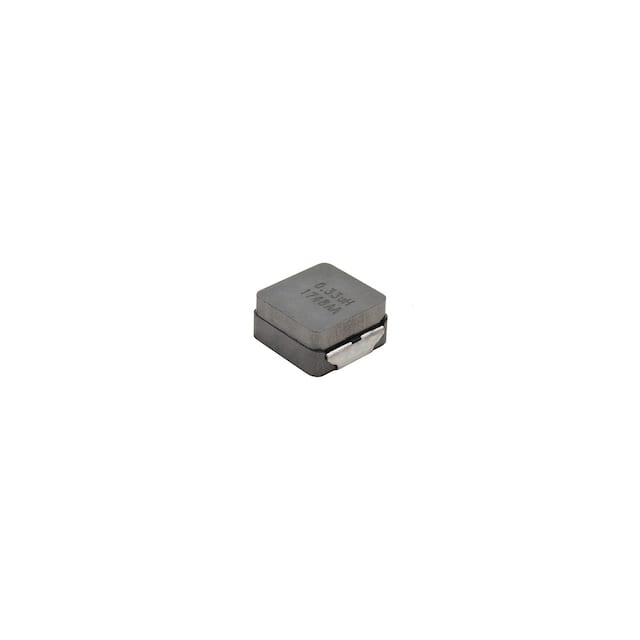

IHLP4040EDER1R0M5AFIXED IND 1UH 26.7A 2.25MOHM SMD |
1,202 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 26.7 A | 17.61A | Shielded | 2.25mOhm Max | - | 39.85MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
IHLP4040EDER8R2M5AFIXED IND 8.2UH 8.61A 22.36 MOHM |
956 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.61 A | 11.1A | Shielded | 22.36mOhm Max | - | 12.55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
IHLE3232DDER330M5AIHLE-3232DD-5A 33 20% ER E3 |
901 | - |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.1 A | 3.2A | Shielded | 159.43mOhm Max | - | 6.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
|
IHLE4040DDEW150M5AFIXED IND 15UH 5.1A 0.05029OHM |
526 | - |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.1 A | 7.7A | Shielded | 50.29mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|

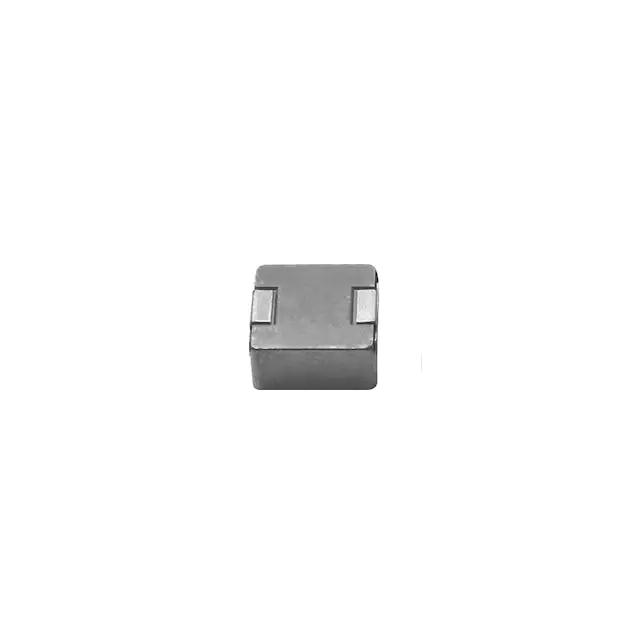

IHLP5050EZER4R7M5AFIXED IND 4.7UH 15.3A 10.1 MOHM |
167 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 15.3 A | 17.8A | Shielded | 10.1mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLE3232DDER150M5AIHLE-3232DD-5A 15 20% ER E3 |
1,066 | - |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 4.8 A | 3.6A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
IHLP4040EDER330M5AFIXED IND 33UH 4.4A 79.18MOHM SM |
104 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 4.4 A | 4.4A | Shielded | 79.18mOhm Max | - | 6.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
