Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE4040DDER3R3M5AFIXED IND 3.3UH 11A 11.81MOHM SM |
745 | - |
|
Datasheet | IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 11 A | 12A | Shielded | 11.81mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
IHSR2525CZER56NM5AIHSR-2525CZ-5A .056 20% ER |
1,097 | - |
|
Datasheet | IHSR-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 nH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
|
IHLE4040DDER1R0M5AFIXED IND 1UH 23.5A 3.07MOHM SMD |
380 | - |
|
Datasheet | IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 23.5 A | 24A | Shielded | 3.07mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
IHLP4040DZER100M8AIHLP-4040DZ-8A 10 20% ER E3 |
240 | - |
|
Datasheet | IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLE4040DDER4R7M5AFIXED IND 4.7UH 9.8A 15.32 MOHM |
1,055 | - |
|
Datasheet | IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 9.8 A | 9.2A | Shielded | 15.32mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
|
IHLE4040DDER6R8M5AFIXED IND 6.8UH 9.1A 22.36 MOHM |
421 | - |
|
Datasheet | IHLE-4040DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 9.1 A | 9A | Shielded | 22.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
IHLP2525EZER5R6M01FIXED IND 5.6UH 6A 34.4 MOHM SMD |
1,911 | - |
|
Datasheet | IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 6 A | 7A | Shielded | 34.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
IHLE4040DDER680M5AIHLE-4040DD-5A 68 20% ER E3 |
1,228 | - |
|
Datasheet | IHLE-4040DD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 2.4 A | 3.5A | Shielded | 252mOhm Max | - | 4.02MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
|
IHLP2525EZER1R0M01FIXED IND 1UH 13A 6.5 MOHM SMD |
1,052 | - |
|
Datasheet | IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 13 A | 15A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|

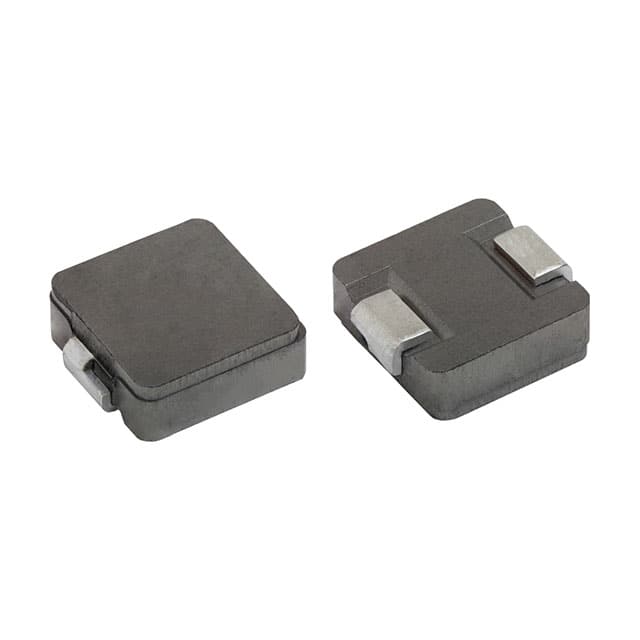

IHSR4040DZERR13M5AIHSR-4040DZ-5A .13 20% ER E3 |
2,825 | - |
|
Datasheet | IHSR-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 130 nH | ±20% | 72 A | 92A | Shielded | 0.58mOhm Max | - | 151MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
