Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP5050EZER1R8M5AFIXED IND 1.8UH 28.62A 3.58 MOHM |
535 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 28.62 A | 26.4A | Shielded | 3.58mOhm Max | - | 26.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
IHLP5050EZER150M5AFIXED IND 15UH 7.7A 29.7MOHM SMD |
315 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 7.7 A | 7.5A | Shielded | 29.7mOhm Max | - | 9.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
IHLP5050FDERR56M01FIXED IND 560NH 37A 1.4 MOHM SMD |
414 | - |
|
Datasheet | IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 37 A | 62A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
IHLP5050EZERR33M5AFIXED IND 330NH 62.38A 1.02 MOHM |
250 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 62.38 A | 45.24A | Shielded | 1.02mOhm Max | - | 77.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLP5050EZERR68M5AFIXED IND 680NH 49.63A 1.41 MOHM |
120 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 49.63 A | 30A | Shielded | 1.41mOhm Max | - | 50.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
IHLP5050FDER3R3MA1IHLP-5050FD-A1 3.3 20% ER E3 |
125 | - |
|
Datasheet | IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 18 A | 35A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
IHSM3825ER4R7LFIXED IND 4.7UH 2.17A 83MOHM SMD |
367 | - |
|
Datasheet | IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±15% | 2.17 A | 1.93A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
IHSM4825ER1R0LFIXED IND 1UH 8.6A 13 MOHM SMD |
1,980 | - |
|
Datasheet | IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±15% | 8.6 A | 4.1A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|

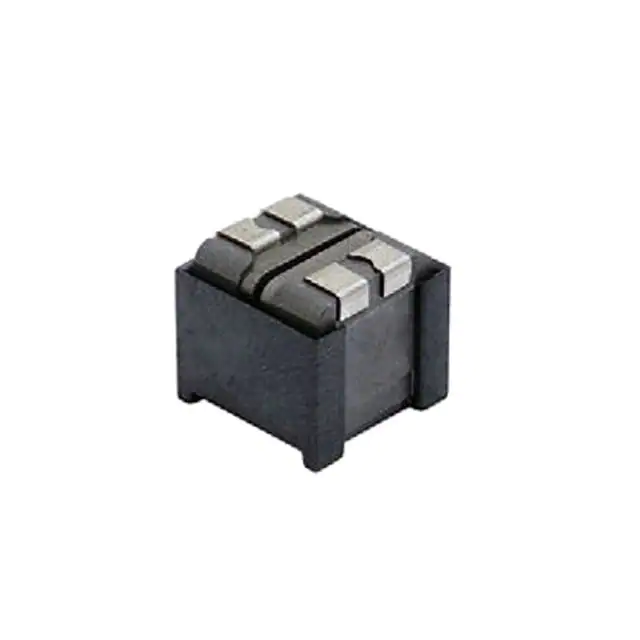

IHLD3232HBER100M5AFIXED IND 10UH 5A 53.5 MOHM SMD |
998 | - |
|
Datasheet | IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.2A | Shielded | 53.5mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
|
IHSM3825ER1R0LFIXED IND 1UH 5.11A 15 MOHM SMD |
220 | - |
|
Datasheet | IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±15% | 5.11 A | 4.41A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
