Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLD2525GGER150M5AFIXED IND 15UH 3.2A 95.8MOHM SMD |
317 | - |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.2 A | 3A | Shielded | 95.8mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
|
IHLD2525GGER100M5AFIXED IND 10UH 4.1A 66.34MOHM SM |
151 | - |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.1 A | 3.6A | Shielded | 66.34mOhm Max | - | 16.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
|
IHLD2525GGER220M5AFIXED IND 22UH 2.2A 164.8MOHM SM |
132 | - |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.2 A | 2.5A | Shielded | 164.8mOhm Max | - | 10.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|

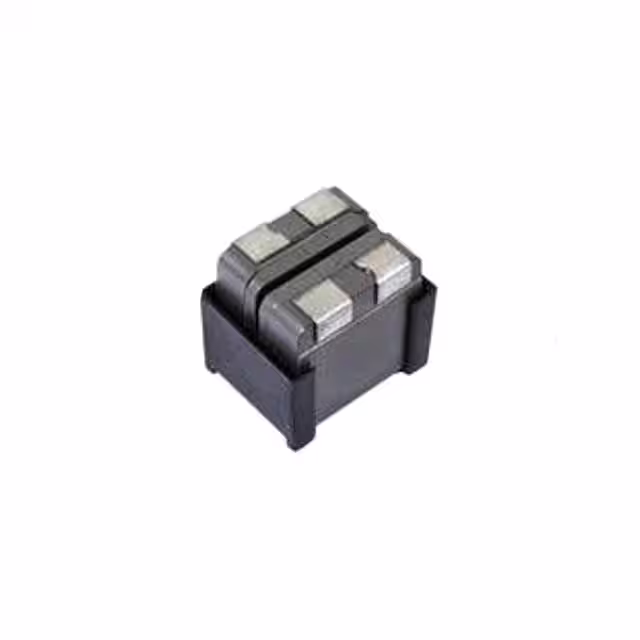

IHLD4032KBER330M5AFIXED IND 33UH 3.8A 107MOHM SMD |
284 | - |
|
Datasheet | IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3.8 A | 3.7A | Shielded | 107mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.379" W (11.90mm x 9.62mm) | 0.441" (11.20mm) |
|
IHLD3232HBER220M5AFIXED IND 22UH 3.3A 110.21 MOHM |
512 | - |
|
Datasheet | IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.3 A | 2.9A | Shielded | 110.21mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
IHLE5050FHER150M5AIHLE-5050FH-5A 15 20% ER E3 |
329 | - |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 10.1 A | 7.7A | Shielded | 25.68mOhm Max | - | 8.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHLP6767DZER6R8M01FIXED IND 6.8UH 13.2A 16MOHM SMD |
163 | - |
|
Datasheet | IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 13.2 A | 21A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
IHSM7832ER101LFIXED IND 100UH 1.7A 226MOHM SMD |
2,260 | - |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.7 A | 680mA | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
IHLE5050FHER3R3M5AFIXED IND 3.3UH 20.2A 5.44 MOHM |
235 | - |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 20.2 A | 16.7A | Shielded | 5.44mOhm Max | - | 17.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHA102EBFIXED IND 100UH 2.1A 160 MOHM TH |
218 | - |
|
Datasheet | IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | - | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
