Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7687480102WE-TI HV RADIAL LEADED WIRE WOUN |
3,481 | - |
|
Datasheet | WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±5% | 800 mA | 800mA | Unshielded | 1.2Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
744787220FIXED IND 22UH 1.83A 103MOHM SMD |
1,065 | - |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.83 A | 1.7A | Shielded | 103mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787120FIXED IND 12UH 2.45A 52 MOHM SMD |
2,123 | - |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.45 A | 2.4A | Shielded | 52mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
7447231103FIXED IND 10MH 250MA 8.5 OHM TH |
2,670 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 10 mH | ±5% | 250 mA | 320mA | Unshielded | 8.5Ohm Max | - | 320kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
|
7447231681FIXED IND 680UH 1A 590 MOHM TH |
1,980 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 680 µH | ±10% | 1 A | 1.2A | Unshielded | 590mOhm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744710605FIXED IND 6UH 5A 11.7 MOHM TH |
4,892 | - |
|
Datasheet | WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 5 A | - | Unshielded | 11.7mOhm | - | 60MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | - |
|
7447773022FIXED IND 2.2UH 4.8A 17.5MOHM SM |
4,446 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 8A | Shielded | 17.5mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
744150FIXED IND 26UH 10.3A 15 MOHM TH |
3,199 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 26 µH | ±20% | 10.3 A | 4A | Shielded | 15mOhm Max | - | 25MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|

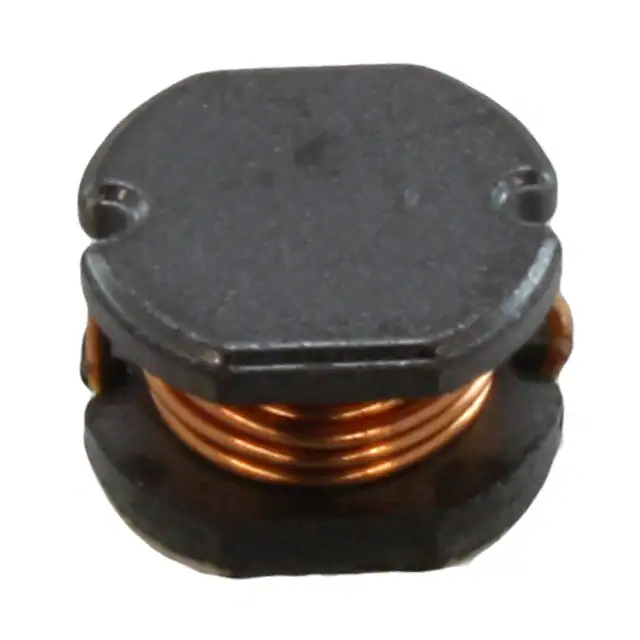

744775118FIXED IND 18UH 1.89A 100MOHM SMD |
1,232 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.89 A | 2.14A | Unshielded | 100mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744750460100FIXED IND 10UH 9.2A 8.6 MOHM TH |
2,582 | - |
|
Datasheet | WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.2 A | 11.3A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.504" Dia (12.80mm) | 0.622" (15.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
