Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

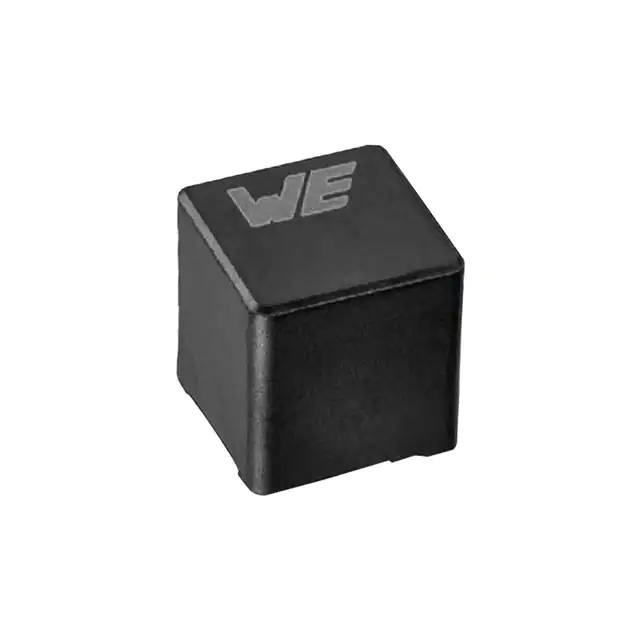

7843322000WE-CHSA SMT HIGH CURRENT INDUCTO |
1,314 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 20 µH | ±20% | 5.4 A | 7A | Shielded | 43.1mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
744323120FIXED IND 1.2UH 12A 6.6 MOHM SMD |
3,079 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 12 A | 15A | Shielded | 6.6mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|
S14100034FIXED IND 22UH 18A 4.5 MOHM TH |
2,596 | - |
|
Datasheet | WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 22 µH | ±20% | 18 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.378" Dia (35.00mm) | 0.689" (17.50mm) |
|
744136FIXED IND 346UH 3.8A 140 MOHM TH |
3,220 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 346 µH | ±20% | 3.8 A | 1.5A | Unshielded | 140mOhm Max | - | 3.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
744137FIXED IND 630UH 3.1A 175 MOHM TH |
1,446 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 630 µH | ±20% | 3.1 A | 1A | Unshielded | 175mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
|
744118FIXED IND 600UH 2.2A 330 MOHM TH |
3,167 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 600 µH | ±20% | 2.2 A | 1.1A | Unshielded | 330mOhm Max | - | 1.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|
7443782012100FIXED IND 10UH 20.6A 5 MOHM TH |
2,196 | - |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 20.6 A | 20.6A | Shielded | 5mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
S14100032FIXED IND 150UH 10A 21 MOHM TH |
3,467 | - |
|
Datasheet | WE-LCB | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.516" L x 1.496" W (38.50mm x 38.00mm) | 0.709" (18.00mm) |
|
7444013119220FIXED IND 22UH 10A 5.3 MOHM TH |
3,904 | - |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 10 A | 33A | Unshielded | 5.3mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|
|
7444013119082FIXED IND 8.2UH 19A 2.5 MOHM TH |
2,825 | - |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 19 A | 52A | Unshielded | 2.5mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
