Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "74479775210")
|
74479775210FIXED IND 1UH 1.1A 100 MOHM SMD |
3,072 | - |
|
Datasheet | WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.1 A | 700mA | Shielded | 100mOhm | 10 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
.jpg "74479763210")
|
74479763210FIXED IND 1UH 750MA 300 MOHM SMD |
2,300 | - |
|
Datasheet | WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 750 mA | 350mA | Shielded | 300mOhm | 14 @ 1MHz | 150MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

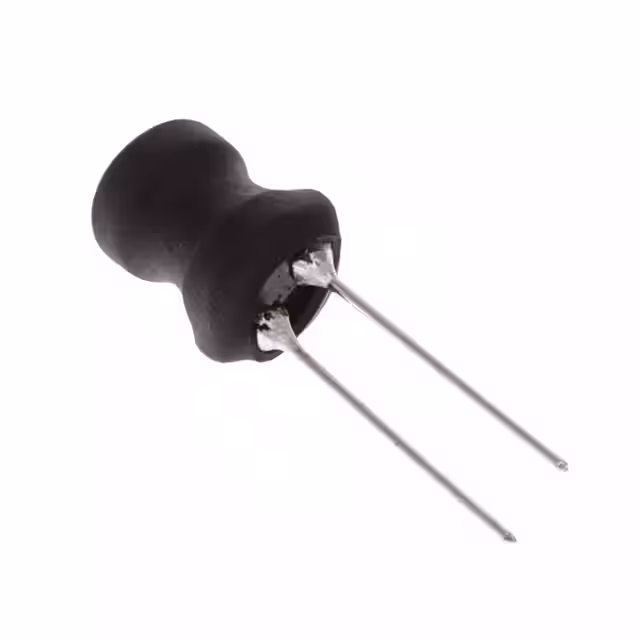

7447725FIXED INDUCTOR |
3,319 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74479974133FIXED IND 330NH 2A 69 MOHM SMD |
3,157 | - |
|
Datasheet | WE-PMMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 2 A | 3A | Shielded | 69mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
74479974147FIXED IND 470NH 1.8A 86 MOHM SMD |
4,252 | - |
|
Datasheet | WE-PMMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.8 A | 2.6A | Shielded | 86mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
74479974156FIXED IND 560NH 1.7A 100MOHM SMD |
2,787 | - |
|
Datasheet | WE-PMMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 1.7 A | 2.4A | Shielded | 100mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
74479976124FIXED IND 240NH 3.5A 18 MOHM SMD |
4,183 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 240 nH | ±20% | 3.5 A | 4A | Shielded | 18mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479976147FIXED IND 470NH 2.7A 30 MOHM SMD |
3,554 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.7 A | 2.9A | Shielded | 30mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479976147AFIXED IND 470NH 3A 25 MOHM SMD |
4,220 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 3 A | 3.4A | Shielded | 25mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479976210FIXED IND 1UH 1.8A 93 MOHM SMD |
1,437 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.8 A | 2.4A | Shielded | 93mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
