Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74479976215FIXED IND 1.5UH 1.6A 125MOHM SMD |
1,527 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.6 A | 1.9A | Shielded | 125mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479977124FIXED IND 240NH 2.4A 43 MOHM SMD |
2,325 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 240 nH | ±20% | 2.4 A | 3.5A | Shielded | 43mOhm Max | - | 36MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|
74479776233AFIXED IND 3.3UH 1.25A 150MOHM SM |
2,045 | - |
|
Datasheet | WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1.25 A | 330mA | Shielded | 150mOhm Max | 25 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479976133FIXED IND 330NH 3.4A 23 MOHM SMD |
2,102 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 3.4 A | 3.7A | Shielded | 23mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479977156FIXED IND 560NH 2.1A 80 MOHM SMD |
2,789 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 2.1 A | 2.3A | Shielded | 80mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|
|
74479977182FIXED IND 820NH 2A 112 MOHM SMD |
2,638 | - |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±20% | 2 A | 2A | Shielded | 112mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|

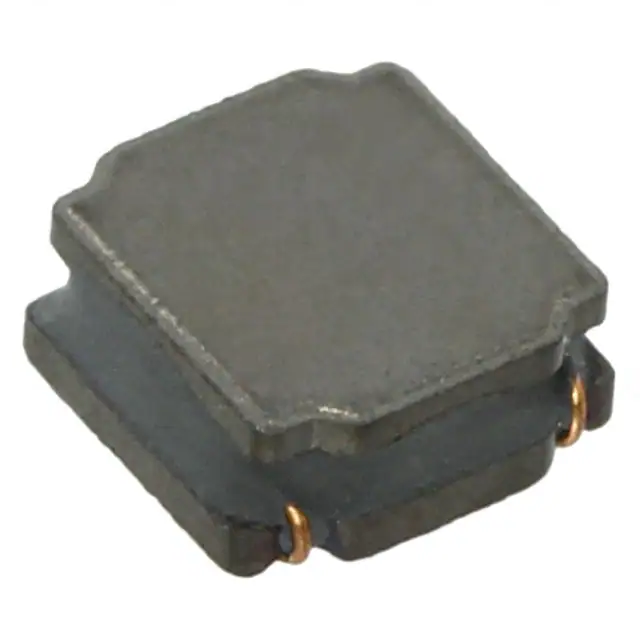

74405031010FIXED IND 1UH 2.4A 54 MOHM SMD |
1,498 | - |
|
Datasheet | WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.4 A | 5.4A | Shielded | 54mOhm Max | - | 66MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
7447797300FIXED IND 2.5UH 8.4A 10.2MOHM SM |
4,724 | - |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±20% | 8.4 A | 10.5A | Shielded | 10.2mOhm Max | - | 61MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
7447720820WE-TI RADIAL LEADED WIRE WOUND I |
3,113 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 82 µH | ±10% | 1.6 A | 1.7A | Unshielded | 190mOhm Max | - | 6.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744742103WE-TI RADIAL LEADED WIRE WOUND I |
4,832 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Ferrite | 10 mH | ±5% | 150 mA | 130mA | Unshielded | 25Ohm Max | - | 430kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.315" Dia (8.00mm) | 0.394" (10.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
