Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74477728FIXED IND 820UH 210MA 5.2OHM SMD |
4,871 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 210 mA | 260mA | Shielded | 5.2Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744304010FIXED IND 100NH 24A 0.00017OHM |
4,365 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±20% | 24 A | 52A | Shielded | 0.17mOhm | - | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1240 | 0.453" L x 0.465" W (11.50mm x 11.80mm) | 0.161" (4.10mm) |
|
7449150079FIXED IND 79NH 23A 2.11 MOHM SMD |
4,646 | - |
|
Datasheet | WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 79 nH | ±20% | 23 A | - | Unshielded | 2.11mOhm Max | 184 @ 100MHz | 422MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.228" (5.80mm) |
|
7447773470FIXED IND 47UH 1.3A 182 MOHM SMD |
1,609 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.7A | Shielded | 182mOhm Max | - | 10.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
7447211221FIXED IND 220UH 1.47A 250MOHM TH |
3,536 | - |
|
Datasheet | WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 220 µH | ±10% | 1.47 A | 1.9A | Unshielded | 250mOhm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
|
7447211682FIXED IND 6.8MH 260MA 7.4 OHM TH |
2,559 | - |
|
Datasheet | WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 6.8 mH | ±5% | 260 mA | 360mA | Unshielded | 7.4Ohm Max | - | 330kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|

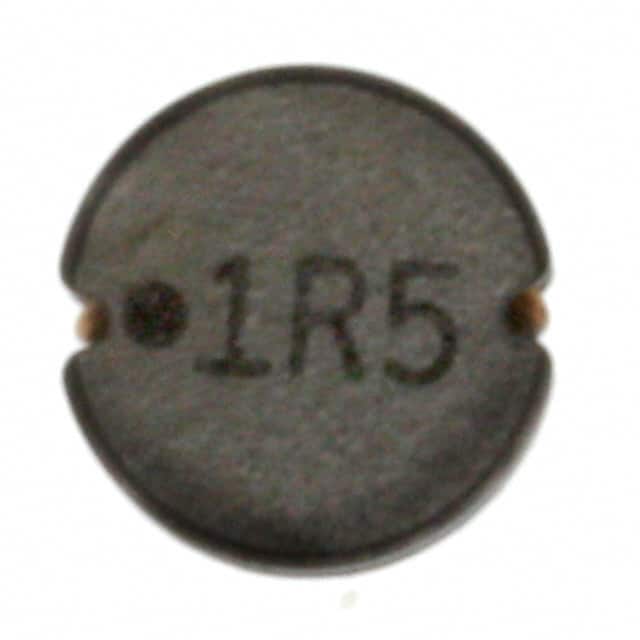

744775015AFIXED IND 1.5UH 6A 20 MOHM SMD |
3,195 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

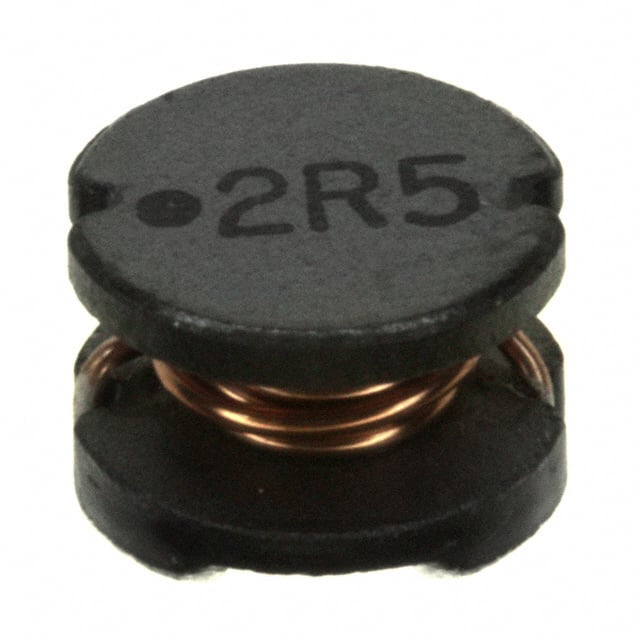

744775025AFIXED IND 2.5UH 5A 20 MOHM SMD |
1,153 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

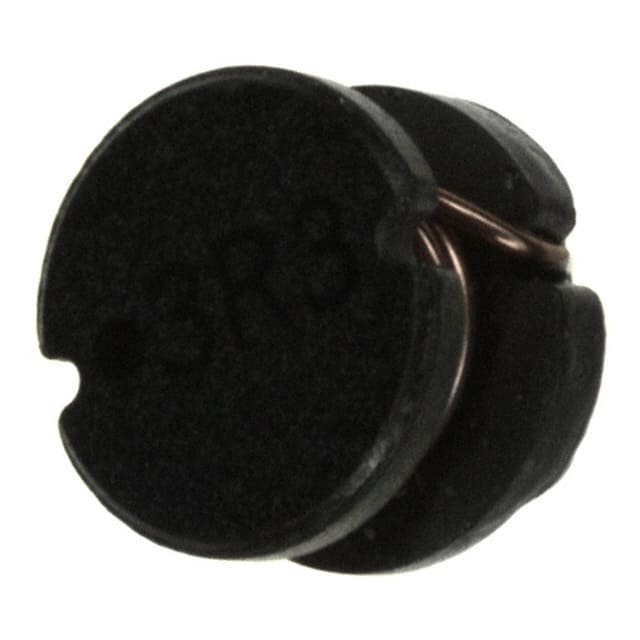

744775033AFIXED IND 3.3UH 4.6A 20 MOHM SMD |
3,183 | - |
|
Datasheet | WE-PD2 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" Dia (7.50mm) | 0.209" (5.30mm) |
|

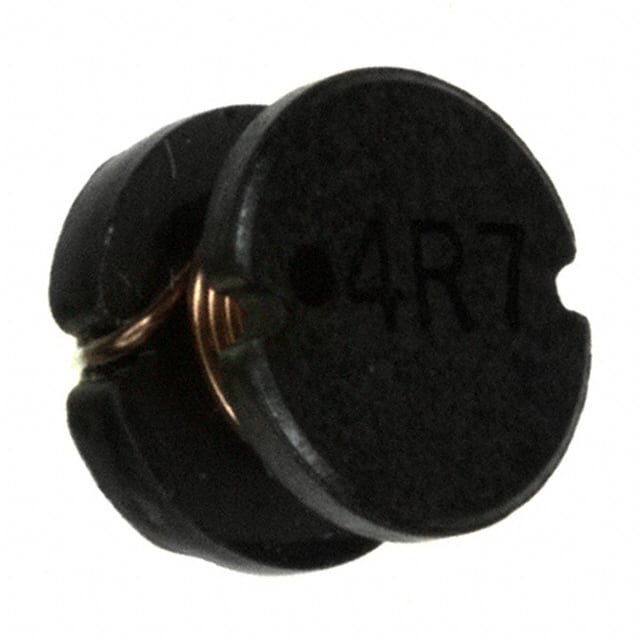

744775047AFIXED IND 4.7UH 3.7A 30 MOHM SMD |
3,455 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.7 A | - | Unshielded | 30mOhm Max | 31 @ 7.96MHz | 38MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
