Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

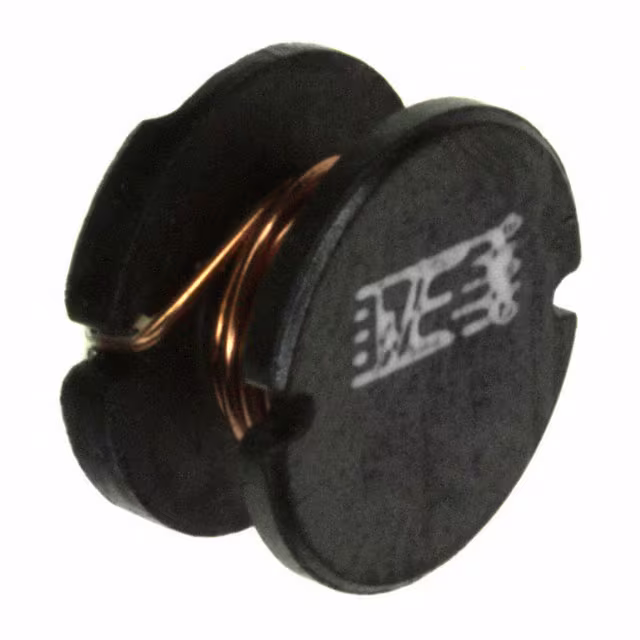

744776068AFIXED IND 6.8UH 3.4A 40 MOHM SMD |
1,686 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | - | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|
110001200FIXED IND 1.96UH 15A 2.4 MOHM |
3,714 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.366" Dia x 0.709" L (9.30mm x 18.00mm) | - |
|

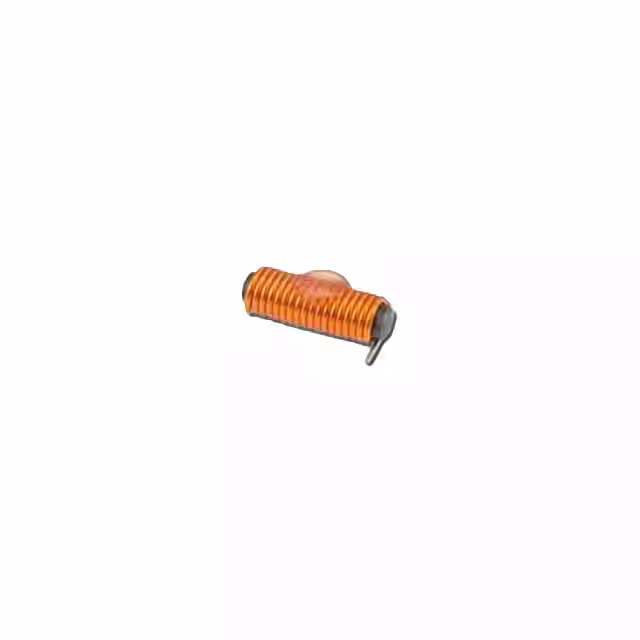

110001101FIXED IND 10.4UH 2.5A 33MOHM SMD |
3,630 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10.4 µH | ±20% | 2.5 A | 7.5A | Unshielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.213" Dia x 0.709" L (5.40mm x 18.00mm) | - |
|
110001100FIXED IND 1UH 22A 2 MOHM SMD |
2,006 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 22 A | 29A | Unshielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.280" Dia x 0.591" L (7.10mm x 15.00mm) | - |
|
784383560033FIXED IND 330NH 9.6A 7.2MOHM SMD |
2,084 | - |
|
Datasheet | WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 9.6 A | 12.4A | Shielded | 7.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

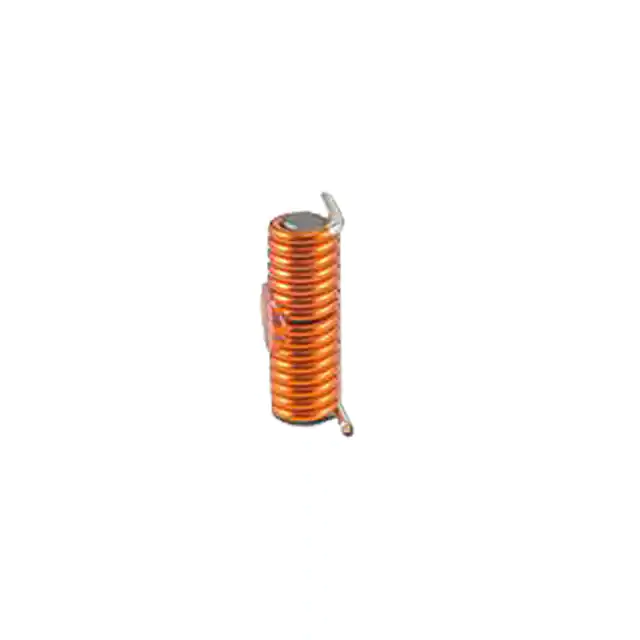

110001270FIXED IND 2.72UH 10A 6.4MOHM SMD |
1,941 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.72 µH | ±20% | 10 A | 18A | Unshielded | 6.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" Dia x 0.591" L (6.50mm x 15.00mm) | - |
|
|
110001450FIXED IND 4.45UH 12A 3.8 MOHM |
1,543 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.45 µH | ±10% | 12 A | 45A | Unshielded | 3.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.453" Dia x 0.984" L (11.50mm x 25.00mm) | - |
|

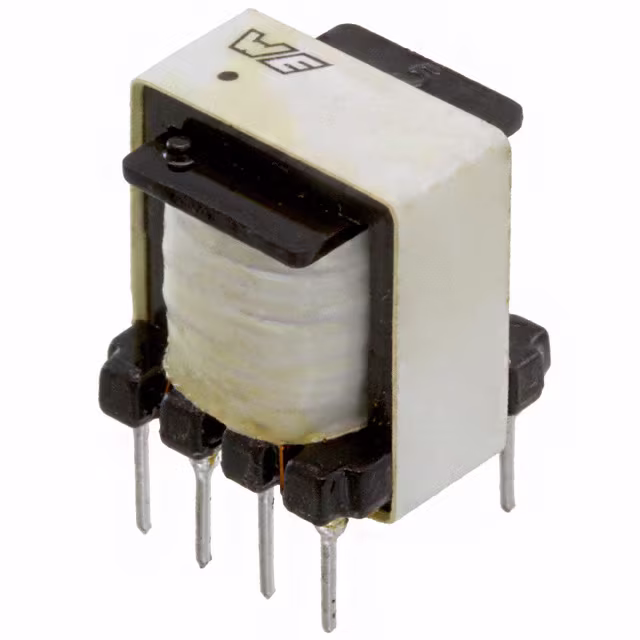

750341422FIXED IND 2.2MH 531 MOHM TH |
1,406 | - |
|
Datasheet | MID-DC16US | 8-DIP Module | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 531mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.453" L x 0.425" W (11.50mm x 10.80mm) | 0.472" (12.00mm) |
|
750341456FIXED IND 300UH 596 MOHM SMD |
4,790 | - |
|
Datasheet | MID-DC16US | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 300 µH | ±10% | - | - | Unshielded | 596mOhm | - | - | - | - | 10 kHz | - | Surface Mount | - | 0.824" L x 0.575" W (20.92mm x 14.60mm) | 0.325" (8.25mm) |
|
744305040FIXED IND 400NH 26A 0.000155OHM |
1,307 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 400 nH | ±20% | 26 A | 21.7A | Shielded | 0.155mOhm | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1350 | 0.531" L x 0.524" W (13.50mm x 13.30mm) | 0.205" (5.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
