Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-18E681FIXED IND 680UH 1.2A 190 MOHM TH |
1,243 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.2 A | - | Shielded | 190mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E821FIXED IND 820UH 1.1A 210 MOHM TH |
2,325 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 1.1 A | - | Shielded | 210mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E102FIXED IND 1MH 1A 280 MOHM TH |
2,897 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Shielded | 280mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E152FIXED IND 1.5MH 900MA 510MOHM TH |
2,508 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 900 mA | - | Shielded | 510mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E222FIXED IND 2.2MH 730MA 630MOHM TH |
2,851 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 730 mA | - | Shielded | 630mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E682FIXED IND 6.8MH 390MA 2.2 OHM TH |
1,730 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 390 mA | - | Shielded | 2.2Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E822FIXED IND 8.2MH 350MA 2.4 OHM TH |
3,099 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 350 mA | - | Shielded | 2.4Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E103FIXED IND 10MH 330MA 2.7 OHM TH |
1,305 | - |
|
Datasheet | 18E | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 330 mA | - | Shielded | 2.7Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|

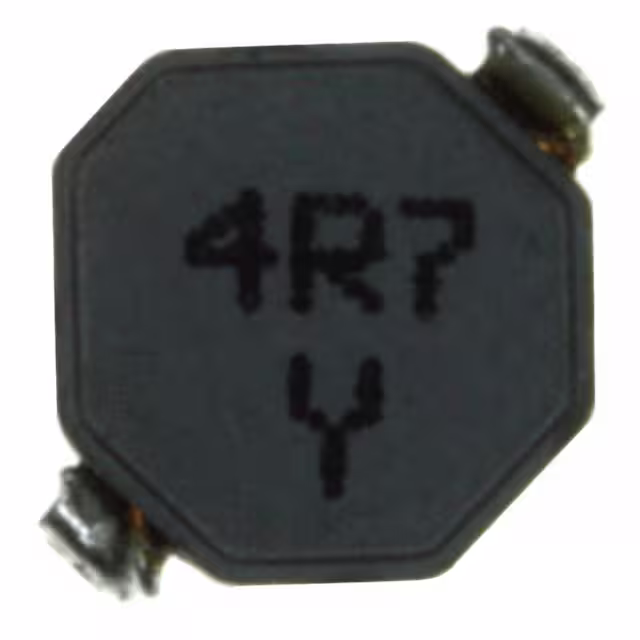

ELL-5PS4R7NFIXED IND 4.7UH 1.6A 61 MOHM SMD |
1,931 | - |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.6 A | 1.5A | Shielded | 61mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-6PG220MFIXED IND 22UH 900MA 230MOHM SMD |
1,190 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 900 mA | 800mA | Shielded | 230mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
