Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
ELL-4GG470M FIXED IND 47UH 350MA 1.25OHM SMD Panasonic Electronic Components	1,249	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	47 µH	±20%	350 mA	400mA	Shielded	1.25Ohm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.055" (1.40mm)

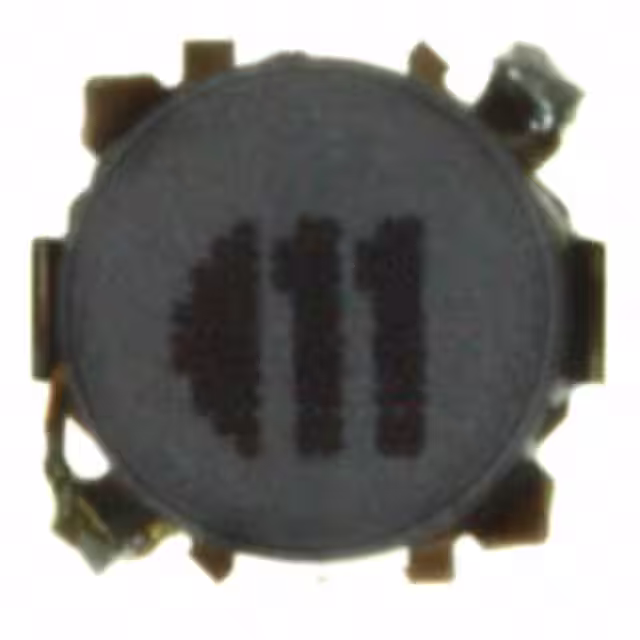

ELL-4LG2R2NA FIXED IND 2.2UH 1.7A 55 MOHM SMD Panasonic Electronic Components	1,866	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	2.2 µH	±30%	1.7 A	1.5A	Shielded	55mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.071" (1.80mm)

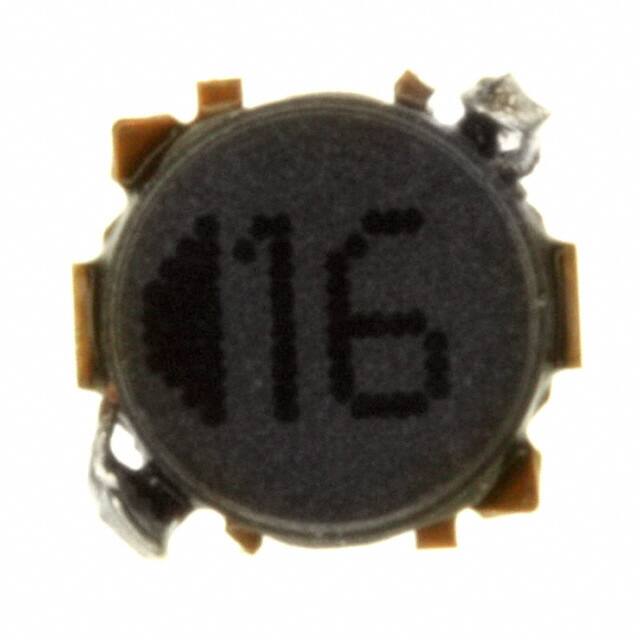

ELL-4LG3R3NA FIXED IND 3.3UH 1.45A 72MOHM SMD Panasonic Electronic Components	4,585	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	3.3 µH	±30%	1.45 A	1.3A	Shielded	72mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.071" (1.80mm)

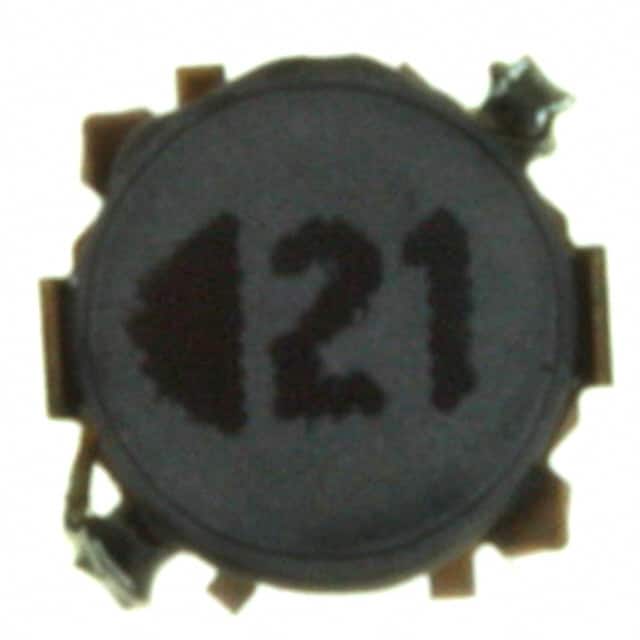

ELL-4LG4R7NA FIXED IND 4.7UH 1.3A 90 MOHM SMD Panasonic Electronic Components	4,326	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	4.7 µH	±30%	1.3 A	1.1A	Shielded	90mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.071" (1.80mm)

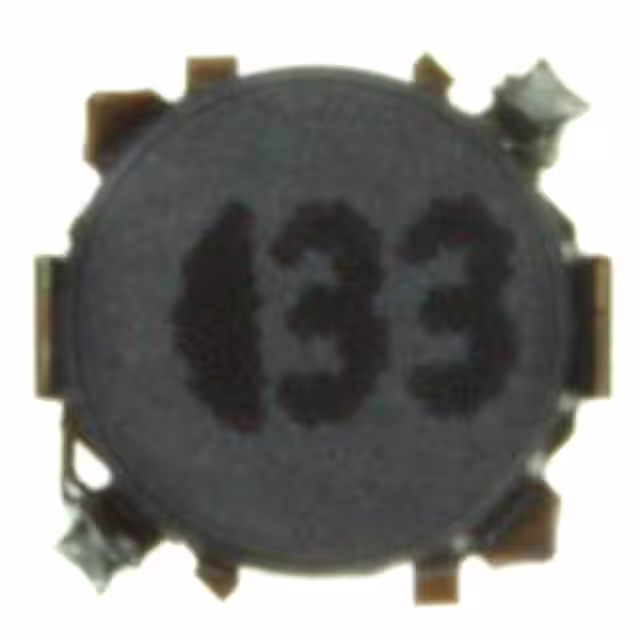

ELL-4LG150MA FIXED IND 15UH 730MA 300MOHM SMD Panasonic Electronic Components	2,877	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	15 µH	±20%	730 mA	620mA	Shielded	300mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.071" (1.80mm)

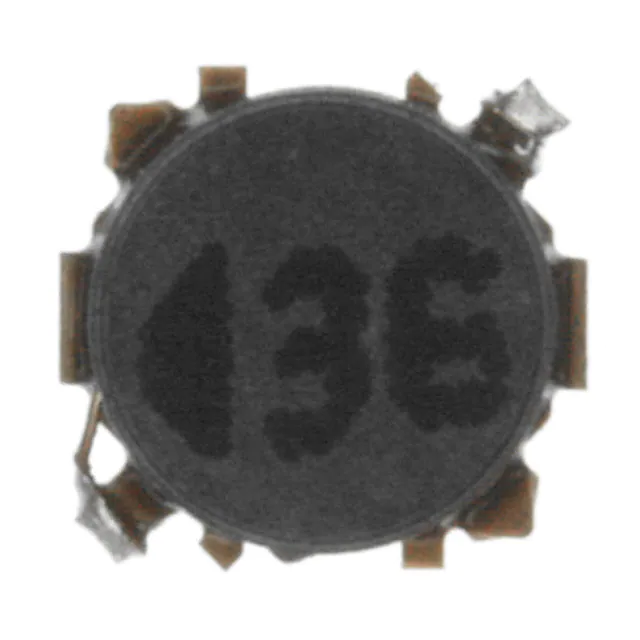

ELL-4LG220MA FIXED IND 22UH 640MA 390MOHM SMD Panasonic Electronic Components	4,405	-	RFQ	Datasheet	G	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	22 µH	±20%	640 mA	550mA	Shielded	390mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.071" (1.80mm)

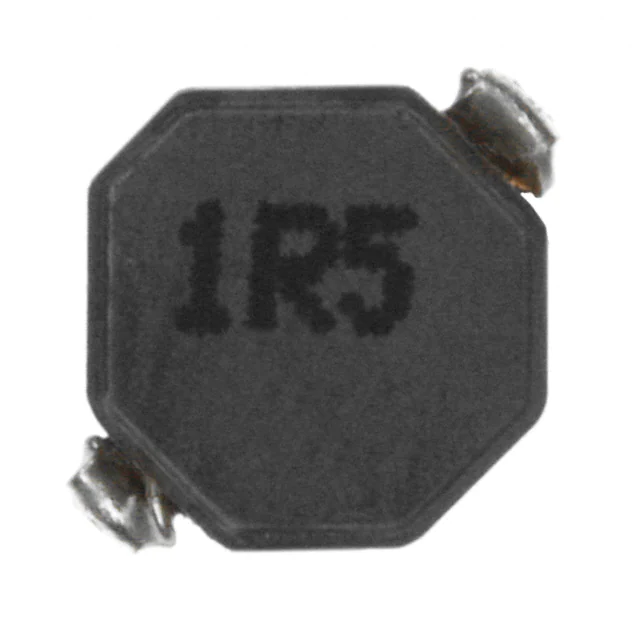

ELL-5PS1R5N FIXED IND 1.5UH 2.4A 28 MOHM SMD Panasonic Electronic Components	4,397	-	RFQ	Datasheet	S	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	1.5 µH	±30%	2.4 A	2.4A	Shielded	28mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.079" (2.00mm)

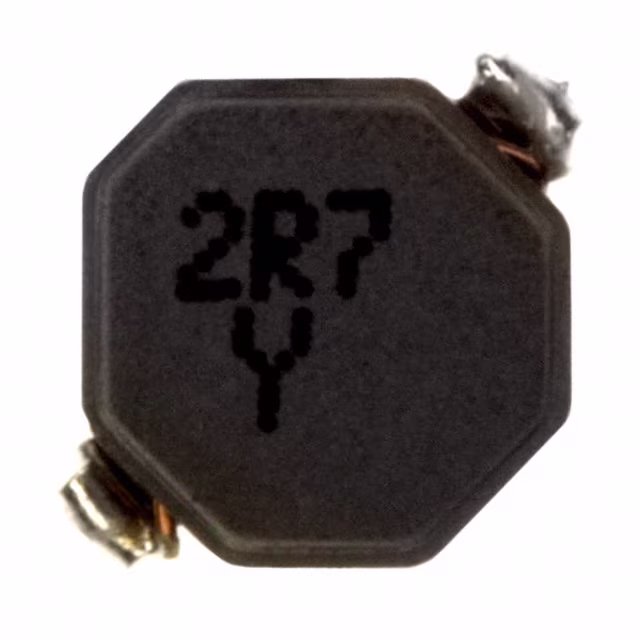

ELL-5PS2R7N FIXED IND 2.7UH 2.05A 40MOHM SMD Panasonic Electronic Components	3,769	-	RFQ	Datasheet	S	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	2.7 µH	±30%	2.05 A	2A	Shielded	40mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.079" (2.00mm)

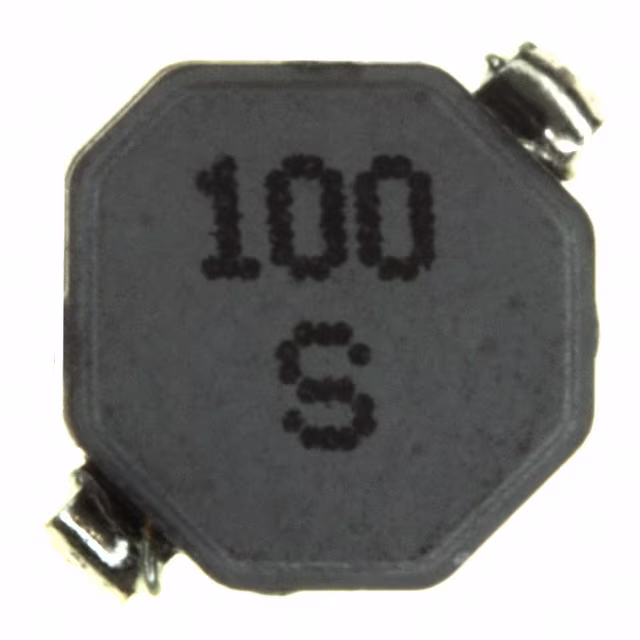

ELL-5PS100M FIXED IND 10UH 1.1A 120 MOHM SMD Panasonic Electronic Components	4,655	-	RFQ	Datasheet	S	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	10 µH	±20%	1.1 A	1A	Shielded	120mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.079" (2.00mm)

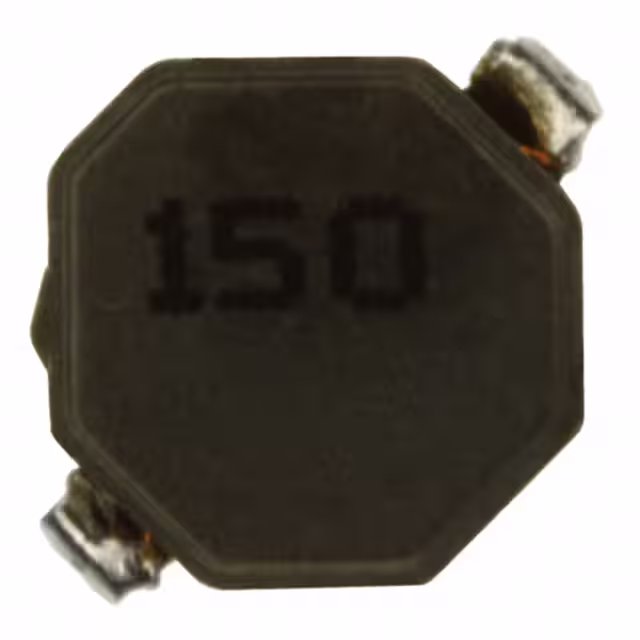

ELL-5PS150M FIXED IND 15UH 1A 170 MOHM SMD Panasonic Electronic Components	2,967	-	RFQ	Datasheet	S	Nonstandard	Tape & Reel (TR)	Obsolete	Wirewound	-	15 µH	±20%	1 A	790mA	Shielded	170mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.079" (2.00mm)
