Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

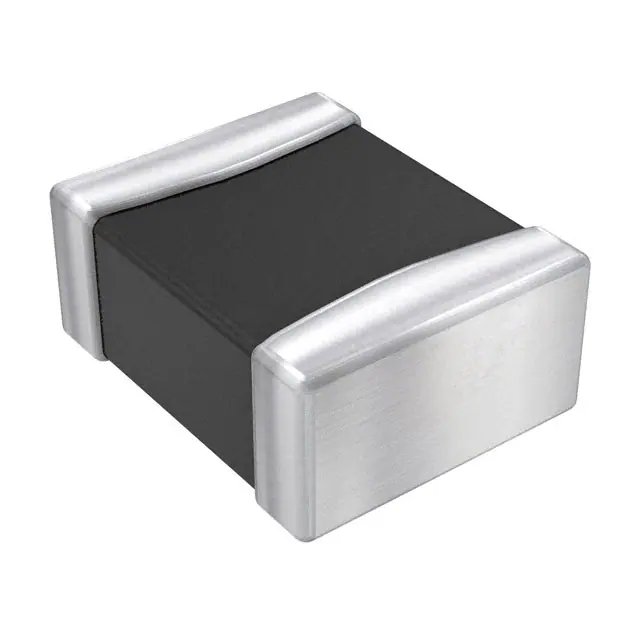

-Height-1,00.jpg "CPI1008KR82R-10")
|
CPI1008KR82R-10FIXED IND 820NH 1.7A 100MOHM SMD |
1,308 | - |
|
Datasheet | CPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±20% | 1.7 A | - | Unshielded | 100mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TYS40206R8M-10FIXED IND 6.8UH 1.04A 125MOHM SM |
1,837 | - |
|
Datasheet | TYS4020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.04 A | 2.2A | Shielded | 125mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
TYS40203R3M-10FIXED IND 3.3UH 1.4A 70 MOHM SMD |
4,495 | - |
|
Datasheet | TYS4020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.4 A | 3.2A | Shielded | 70mOhm | - | 44MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYS60454R7M-10FIXED IND 4.7UH 3.3A 26 MOHM SMD |
2,300 | - |
|
Datasheet | TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 3.3 A | 4.97A | Shielded | 26mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS50201R5N-10FIXED IND 1.5UH 3.2A 26 MOHM SMD |
3,423 | - |
|
Datasheet | TYS5020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 3.2 A | 4.1A | Shielded | 26mOhm | - | 68MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50203R3N-10FIXED IND 3.3UH 2.5A 43 MOHM SMD |
2,801 | - |
|
Datasheet | TYS5020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 2.5 A | 2.55A | Shielded | 43mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50203R6N-10FIXED IND 3.6UH 2.5A 43 MOHM SMD |
2,735 | - |
|
Datasheet | TYS5020 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.6 µH | ±30% | 2.5 A | 2.8A | Shielded | 43mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
TYS252010L6R8M-10FIXED IND 6.8UH 590MA 896MOHM SM |
4,649 | - |
|
Datasheet | TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 590 mA | 780mA | Shielded | 896mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012LR47N-10FIXED IND 470NH 2.15A 56MOHM SMD |
1,123 | - |
|
Datasheet | TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±30% | 2.15 A | 3.82A | Shielded | 56mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS60281R3N-10FIXED IND 1.3UH 4.58A 16.9 MOHM |
3,657 | - |
|
Datasheet | TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±30% | 4.58 A | 6A | Shielded | 16.9mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
