Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS4020680M-10FIXED IND 68UH 360MA 1.06OHM SMD |
1,798 | - |
|
Datasheet | TYS4020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 360 mA | 610mA | Shielded | 1.06Ohm Max | - | 7.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
TYS50201R0N-10FIXED IND 1UH 3.8A 20 MOHM SMD |
2,721 | - |
|
Datasheet | TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 3.8 A | 4.1A | Shielded | 20mOhm Max | - | 114MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50204R7M-10FIXED IND 4.7UH 2.2A 57 MOHM SMD |
3,211 | - |
|
Datasheet | TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 2.5A | Shielded | 57mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50206R8M-10FIXED IND 6.8UH 1.8A 83 MOHM SMD |
2,892 | - |
|
Datasheet | TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.8 A | 2.05A | Shielded | 83mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

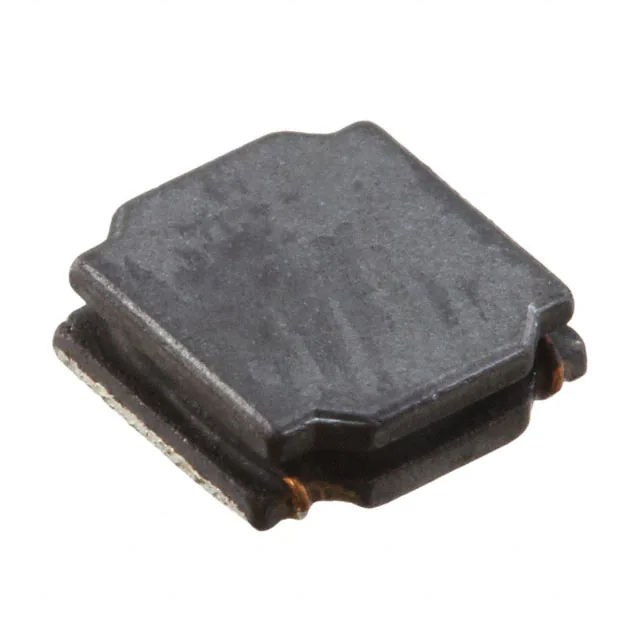

TYS6020100M-10FIXED IND 10UH 1.4A 105 MOHM SMD |
2,156 | - |
|
Datasheet | TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.4 A | 1.75A | Shielded | 105mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
TYS60206R8N-10FIXED IND 6.8UH 1.8A 79 MOHM SMD |
3,369 | - |
|
Datasheet | TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.8 A | 2.2A | Shielded | 79mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
TYS252010L100M-10FIXED IND 10UH 500MA 1.092OHM SM |
1,578 | - |
|
Datasheet | TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 500 mA | 650mA | Shielded | 1.092Ohm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L1R0N-10FIXED IND 1UH 1.65A 108 MOHM SMD |
1,084 | - |
|
Datasheet | TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 1.65 A | 1.85A | Shielded | 108mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L2R2N-10FIXED IND 2.2UH 1.2A 209MOHM SMD |
3,684 | - |
|
Datasheet | TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.2 A | 1.2A | Shielded | 209mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L4R7M-10FIXED IND 4.7UH 700MA 563MOHM SM |
2,171 | - |
|
Datasheet | TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 700 mA | 950mA | Shielded | 563mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
