Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV12033R3M-10FIXED IND 3.3UH 12A 12 MOHM SMD |
2,919 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 12 A | 27A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0404 (1010 Metric) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|

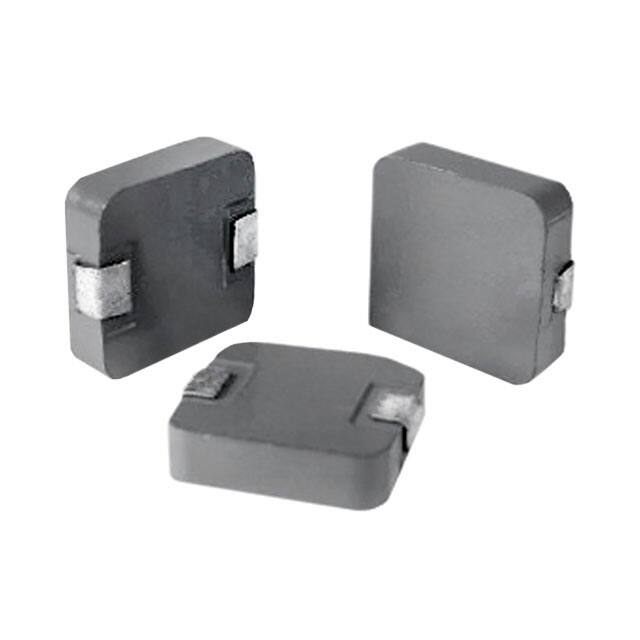

MGV12034R7M-10FIXED IND 4.7UH 10A 16 MOHM SMD |
3,176 | - |
|
Datasheet | MGV | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 10 A | 24A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
1XC0236-1T0-10FIXED IND 4UH 8.5A 7 MOHM TH |
4,533 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 8.5 A | - | Unshielded | 7mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.382" Dia x 0.846" L (9.70mm x 21.50mm) | - |
|
|
MGV0602R10N-10FIXED IND 100NH 21A 2.4MOHM SMD |
1,800 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | 21 A | 40A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R22N-10FIXED IND 220NH 15A 4 MOHM SMD |
2,507 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±30% | 15 A | 32A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R56M-10FIXED IND 560NH 11A 9.3MOHM SMD |
2,138 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 11 A | 18A | Shielded | 9.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06021R2M-10FIXED IND 1.2UH 7.5A 23MOHM SMD |
2,168 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 7.5 A | 13A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06026R8M-10FIXED IND 6.8UH 4A 73 MOHM SMD |
3,425 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4 A | 5.5A | Shielded | 73mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602100M-10FIXED IND 10UH 2.8A 154MOHM SMD |
1,624 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.8 A | 4A | Shielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602150M-10FIXED IND 15UH 2.1A 210MOHM SMD |
4,844 | - |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 3.3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
