Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
23,675 | - |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 180 mA | - | Unshielded | 1.12Ohm | 22 @ 200MHz | 1.62GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
RLB0812-103KLFIXED IND 10MH 34MA 39 OHM TH |
23,064 | - |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 34 mA | - | Unshielded | 39Ohm Max | 60 @ 79.6kHz | 360kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
CW100505-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
19,426 | - |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm | 20 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
CW201212-R47JFIXED IND 470NH 250MA 1.72OHM SM |
55,635 | - |
|
Datasheet | CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 250 mA | - | Unshielded | 1.72Ohm | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-R33JFIXED IND 330NH 200MA 1.65OHM SM |
3,413 | - |
|
Datasheet | CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 200 mA | - | Unshielded | 1.65Ohm | 45 @ 250MHz | 800MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|

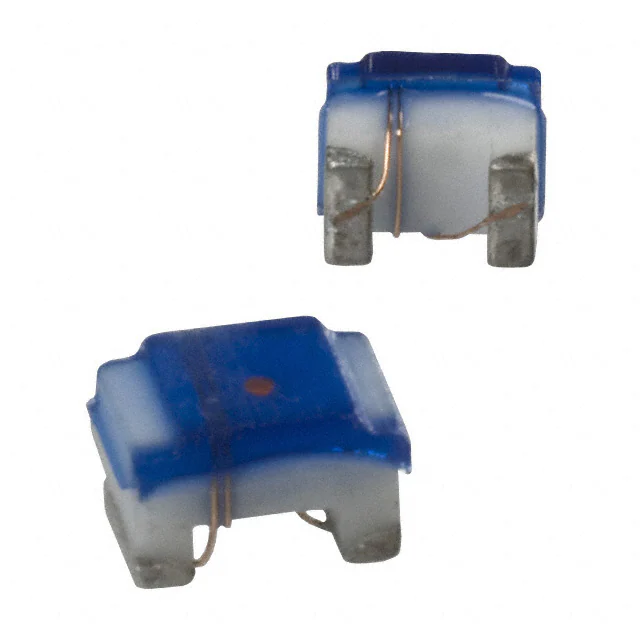

PM0805-22NM-RCFIXED IND 22NH 600MA 100MOHM SMD |
5,336 | - |
|
Datasheet | PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 22 nH | ±20% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CM453232-221KLFIXED IND 220UH 100MA 10 OHM SMD |
266,511 | - |
|
Datasheet | CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2512-1R0MFIXED IND 1UH 3.5A 57 MOHM SMD |
35,490 | - |
|
Datasheet | SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.5 A | 3.9A | Shielded | 57mOhm Max | 10 @ 1MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CM453232-101KLFIXED IND 100UH 110MA 8 OHM SMD |
23,502 | - |
|
Datasheet | CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN4012T-100MFIXED IND 10UH 1.1A 180 MOHM SMD |
23,220 | - |
|
Datasheet | SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 800mA | Shielded | 180mOhm | 10 @ 100kHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
