Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0912-101KLFIXED IND 100UH 1A 330 MOHM TH |
23,190 | - |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1 A | 1.2A | Unshielded | 330mOhm Max | 55 @ 796kHz | 7.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|

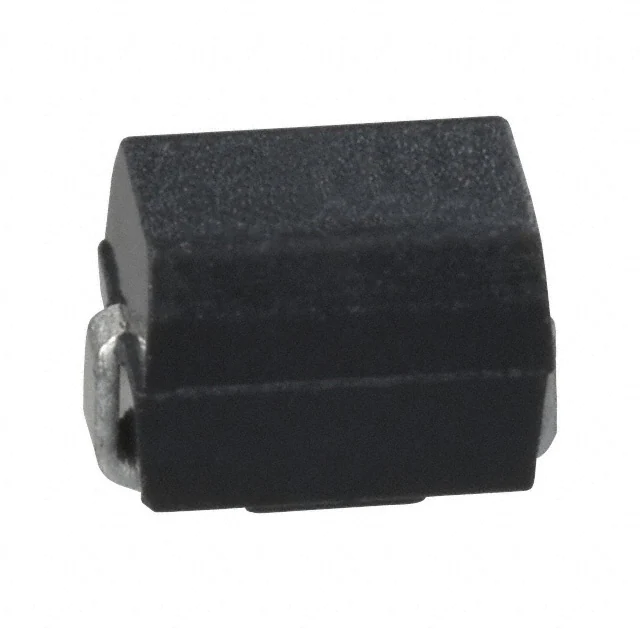

PM1812-221J-RCFIXED IND 220UH 100MA 10 OHM SMD |
16,468 | - |
|
Datasheet | PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 100°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2010TA-4R7MFIXED IND 4.7UH 900MA 360MOHM SM |
15,641 | - |
|
Datasheet | SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | 770mA | Shielded | 360mOhm | 14 @ 1MHz | 62MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
PM1812-102J-RCFIXED IND 1MH 30MA 40 OHM SMD |
8,361 | - |
|
Datasheet | PM1812 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 252kHz | 2.5MHz | - | -40°C ~ 100°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

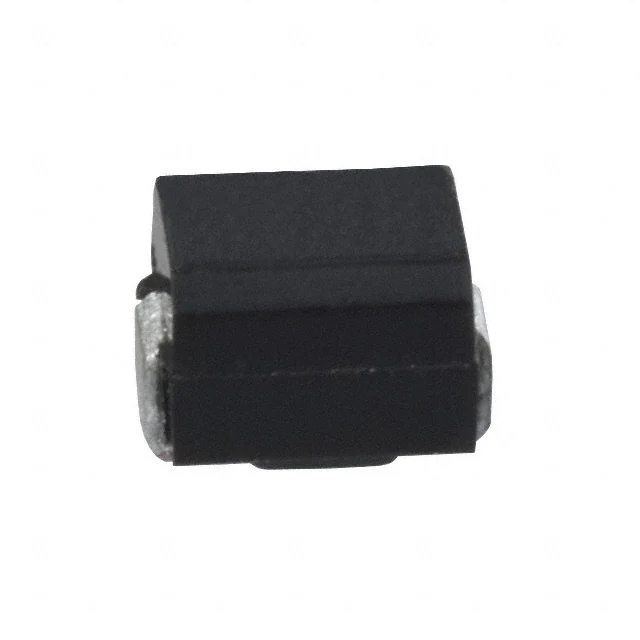

PM1210-120J-RCFIXED IND 12UH 125MA 2.5 OHM SMD |
8,049 | - |
|
Datasheet | PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 125 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-1R0J-RCFIXED IND 1UH 230MA 690 MOHM SMD |
7,878 | - |
|
Datasheet | PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 230 mA | - | Unshielded | 690mOhm Max | 30 @ 7.96MHz | 115MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM1210-4R7J-RCFIXED IND 4.7UH 220MA 1.5OHM SMD |
5,488 | - |
|
Datasheet | PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
RLB0712-101KLFIXED IND 100UH 320MA 400MOHM TH |
5,218 | - |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 320 mA | - | Unshielded | 400mOhm Max | 20 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0712-100KLFIXED IND 10UH 1.1A 70 MOHM TH |
4,985 | - |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.1 A | - | Unshielded | 70mOhm Max | 20 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
CM453232-101JLFIXED IND 100UH 110MA 8 OHM SMD |
3,779 | - |
|
Datasheet | CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
