Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN6045-8R2YFIXED IND 8.2UH 2.7A 55 MOHM SMD |
23,054 | - |
|
Datasheet | SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.7 A | 3.3A | Shielded | 55mOhm Max | 15 @ 7.96MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

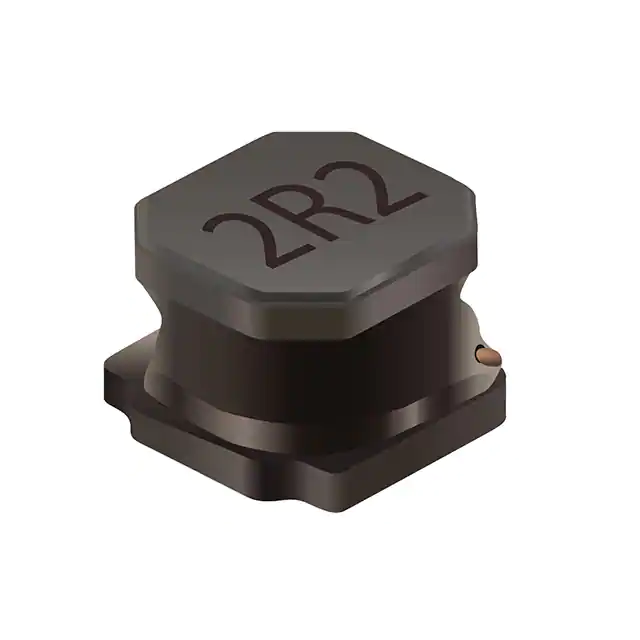

SRN5040TA-101KFIXED IND 100UH 720MA 560MOHM SM |
14,806 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 750mA | Shielded | 560mOhm | 15 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN5040TA-330MFIXED IND 33UH 1.2A 180 MOHM SMD |
5,150 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm | 15 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN5040TA-100MFIXED IND 10UH 2.2A 56 MOHM SMD |
4,591 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.2 A | 2.52A | Shielded | 56mOhm | 15 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN5040TA-1R0MFIXED IND 1UH 5A 12 MOHM SMD |
2,068 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 5 A | 7.5A | Shielded | 12mOhm | 15 @ 100kHz | 140MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN6045-221MFIXED IND 220UH 600MA 1.18OHM SM |
1,488 | - |
|
Datasheet | SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 600 mA | 700mA | Shielded | 1.18Ohm Max | 25 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN5040TA-470KFIXED IND 47UH 1A 270 MOHM SMD |
1,488 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.1A | Shielded | 270mOhm | 15 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
|
SRN5040TA-220MFIXED IND 22UH 1.5A 123 MOHM SMD |
1,205 | - |
|
Datasheet | SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 1.62A | Shielded | 123mOhm | 15 @ 100kHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
SRN4018BTA-4R7MIND,4X4X1.6MM,4.7UH20%,1.7A,SHD |
2,493 | - |
|
Datasheet | SRN4018BTA | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 70mOhm | 10 @ 100kHz | 35MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRP2512A-1R0MFIXED IND 1UH 3.5A 49 MOHM SMD |
11,026 | - |
|
Datasheet | SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.5 A | 4.4A | Shielded | 49mOhm Max | 39 @ 1MHz | 82MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
