Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0604-471KLFIXED IND 470UH 210MA 3.3OHM SMD |
17,150 | - |
|
Datasheet | SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 210 mA | 300mA | Unshielded | 3.3Ohm Max | 25 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|

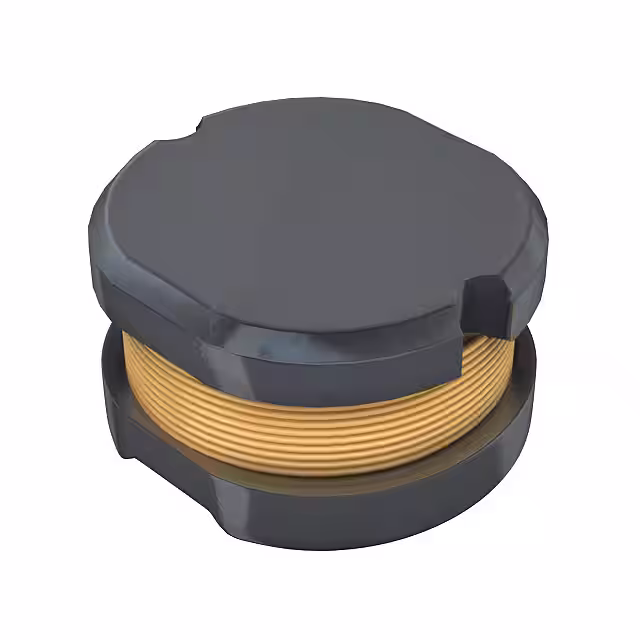

SDR0302-122KLFIXED IND 1.2MH 60MA 30 OHM SMD |
13,603 | - |
|
Datasheet | SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 60 mA | 80mA | Unshielded | 30Ohm Max | 40 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
SDR0403-100MLFIXED IND 10UH 1.15A 180MOHM SMD |
12,917 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.15 A | 1.7A | Unshielded | 180mOhm Max | 28 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

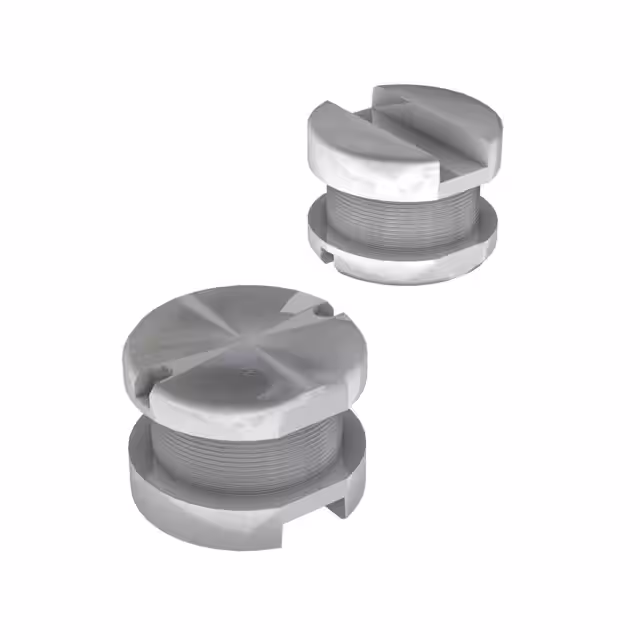

SDR0403-2R2MLFIXED IND 2.2UH 2.6A 47 MOHM SMD |
12,839 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 3.9A | Unshielded | 47mOhm Max | 28 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0403-1R0MLFIXED IND 1UH 3.8A 33 MOHM SMD |
11,647 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.8 A | 5.5A | Unshielded | 33mOhm Max | 28 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0403-220MLFIXED IND 22UH 760MA 380MOHM SMD |
11,104 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 760 mA | 1.2A | Unshielded | 380mOhm Max | 25 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SRN6045TA-181MFIXED IND 180UH 680MA 745MOHM SM |
10,715 | - |
|
Datasheet | SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 680 mA | 1A | Shielded | 745mOhm | 15 @ 1MHz | 6MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SDR0403-2R7MLFIXED IND 2.7UH 2.43A 52MOHM SMD |
10,244 | - |
|
Datasheet | SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.43 A | 3.5A | Unshielded | 52mOhm Max | 28 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SDR0302-100MLFIXED IND 10UH 800MA 250MOHM SMD |
9,774 | - |
|
Datasheet | SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 900mA | Unshielded | 250mOhm Max | 18 @ 2.52MHz | 34MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
SDR0604-470KLFIXED IND 47UH 720MA 370MOHM SMD |
8,105 | - |
|
Datasheet | SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 720 mA | 1A | Unshielded | 370mOhm Max | 22 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
