Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6306-RCFIXED IND 10MH 100MA 31 OHM TH |
3,290 | - |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 100 mA | - | Unshielded | 31Ohm Max | 95 @ 79.6kHz | 710kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
6302-RCFIXED IND 2.5MH 160MA 9 OHM TH |
2,088 | - |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±5% | 160 mA | - | Unshielded | 9Ohm Max | 95 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - |
|

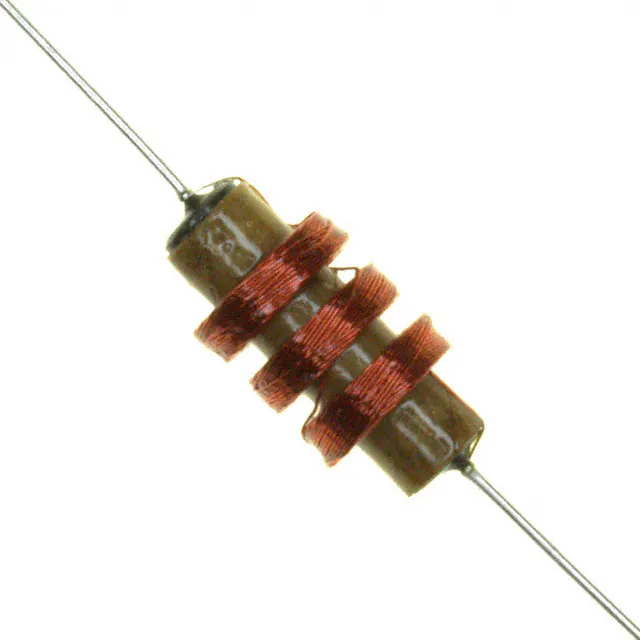

6304-RCFIXED IND 5MH 160MA 14 OHM TH |
3,571 | - |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 mH | ±5% | 160 mA | - | Unshielded | 14Ohm Max | 80 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD |
1,245 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 300 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-1N8DFIXED IND 1.8NH 300MA 120MOHM SM |
1,452 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-2N7DFIXED IND 2.7NH 300MA 130MOHM SM |
2,524 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-3N9DFIXED IND 3.9NH 300MA 210MOHM SM |
3,264 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-5N6DFIXED IND 5.6NH 300MA 230MOHM SM |
3,747 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 230mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-12NJFIXED IND 12NH 200MA 400MOHM SMD |
3,946 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 12 nH | ±5% | 200 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.7GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-18NJFIXED IND 18NH 200MA 550MOHM SMD |
3,489 | - |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 200 mA | - | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
