Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD |
1,418 | - |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 800 nH | ±20% | 21 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|

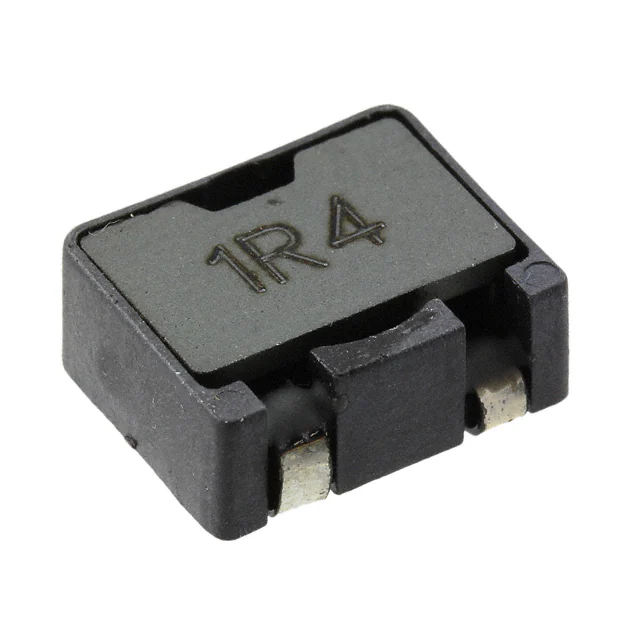

SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD |
1,891 | - |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 13 A | 14A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD |
4,203 | - |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.5 A | 10A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD |
2,342 | - |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 8 A | 8A | Shielded | 10.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD |
2,099 | - |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 360 nH | ±30% | 23 A | 26A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|

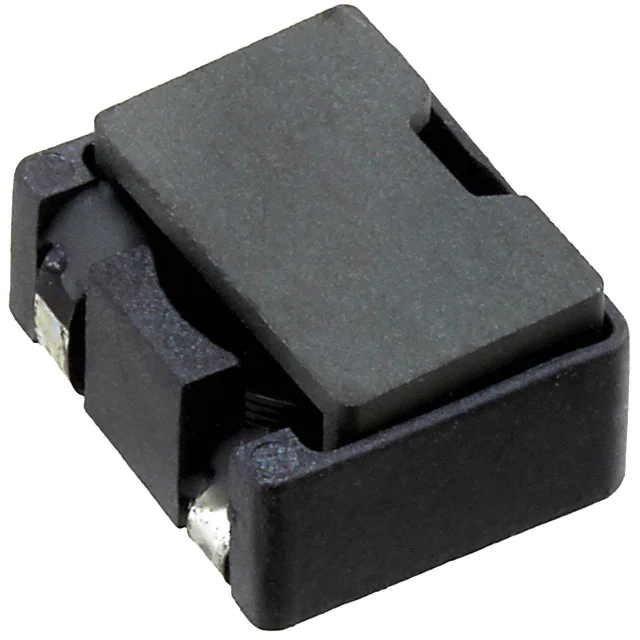

SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD |
2,472 | - |
|
Datasheet | SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 10 A | 8A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|
|
SRP1055-7R2MFIXED IND 7.2UH 7A 15.5 MOHM SMD |
1,061 | - |
|
Datasheet | SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7.2 µH | ±20% | 7 A | 6.2A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|

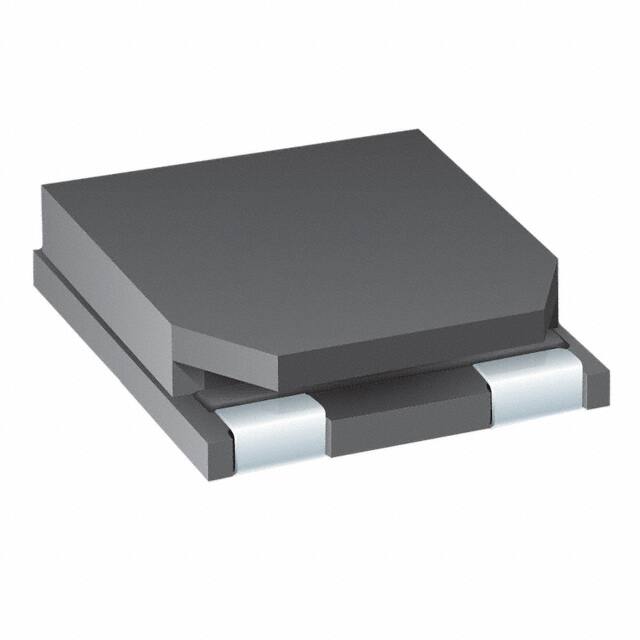

SRP1204-1R1MFIXED IND 1.1UH 12A 4.5 MOHM SMD |
4,890 | - |
|
Datasheet | SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 µH | ±20% | 12 A | 13A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
SRP1204-R50MFIXED IND 550NH 13A 3 MOHM SMD |
4,270 | - |
|
Datasheet | SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 550 nH | ±20% | 13 A | 14A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|

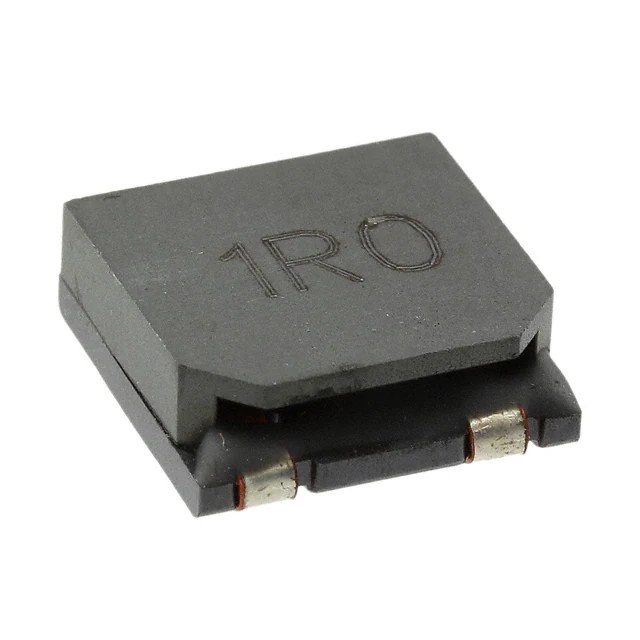

SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD |
1,678 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 14 A | 22A | Shielded | 3.4mOhm Max | - | 75MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
