Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1205-2R5YFIXED IND 2.5UH 11.5A 3.4MOHM SM |
2,583 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 µH | ±25% | 11.5 A | 12A | Shielded | 3.4mOhm Max | - | 40MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-4R0YFIXED IND 4UH 10.5A 5.4 MOHM SMD |
2,882 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 10.5 A | 8.3A | Shielded | 5.4mOhm Max | - | 35MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-R60YFIXED IND 600NH 16A 2.5 MOHM SMD |
1,659 | - |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 600 nH | ±25% | 16 A | 27A | Shielded | 2.5mOhm Max | - | 95MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

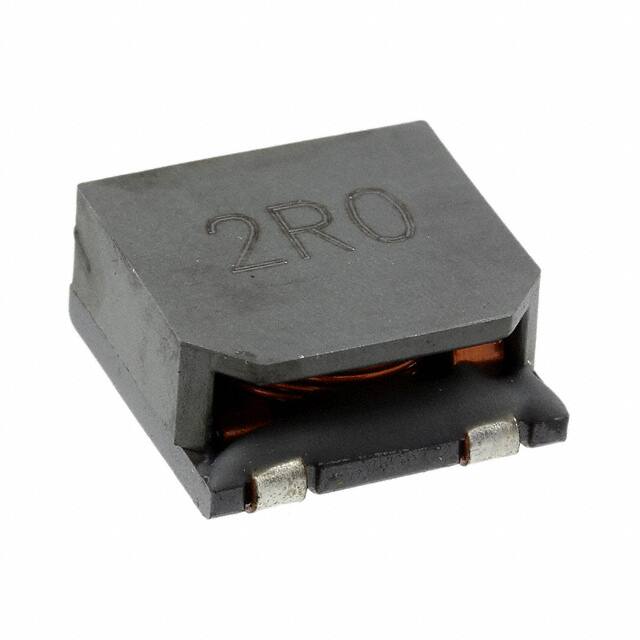

SRP1206-2R0YFIXED IND 2UH 17A 6 MOHM SMD |
2,649 | - |
|
Datasheet | SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 17 A | 15A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRP1206-3R3ZFIXED IND 3.3UH 14A 7 MOHM SMD |
3,271 | - |
|
Datasheet | SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±25% | 14 A | 12A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP1235-100MFIXED IND 10UH 7A 34 MOHM SMD |
3,407 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 10 µH | ±20% | 7 A | 9.5A | Shielded | 34mOhm Max | - | 11MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-1R8MFIXED IND 1.8UH 16.5A 7 MOHM SMD |
2,221 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.8 µH | ±20% | 16.5 A | 24A | Shielded | 7mOhm Max | - | 32MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-5R6MFIXED IND 5.6UH 10A 18 MOHM SMD |
3,885 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 5.6 µH | ±20% | 10 A | 14A | Shielded | 18mOhm Max | - | 15MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-8R2MFIXED IND 8.2UH 8.5A 28 MOHM SMD |
3,763 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 8.2 µH | ±20% | 8.5 A | 12A | Shielded | 28mOhm Max | - | 12MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R10MFIXED IND 100NH 43A 960 MOHM SMD |
2,162 | - |
|
Datasheet | SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 100 nH | ±20% | 43 A | 56A | Shielded | 960mOhm Max | - | 105MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
