Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F152AI-RCFIXED IND 15MH 47MA 113 OHM TH |
3,579 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 mH | ±5% | 47 mA | - | Unshielded | 113Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|
70F253AI-RCFIXED IND 2.5MH 57MA 45.6 OHM TH |
4,058 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.5 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 48 @ 250kHz | 960kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
70F563AI-RCFIXED IND 5.6MH 46MA 69.6 OHM TH |
4,553 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 mH | ±5% | 46 mA | - | Unshielded | 69.6Ohm Max | 53 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) | - |
|
70F252AF-RCFIXED IND 25MH 46MA 115 OHM TH |
1,591 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|

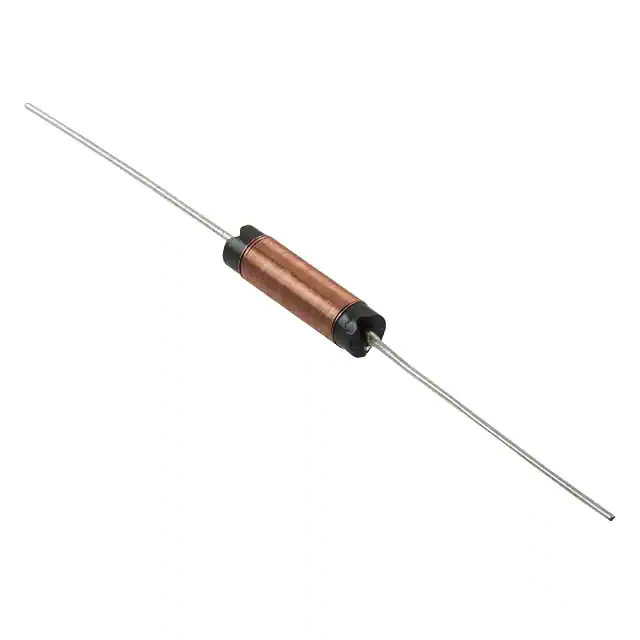

4622-RCFIXED IND 10UH 1.5A 110 MOHM TH |
1,183 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±5% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.52MHz | 40MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4624-RCFIXED IND 15UH 1A 170 MOHM TH |
4,324 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±5% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4626-RCFIXED IND 24UH 800MA 340 MOHM TH |
1,071 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 24 µH | ±5% | 800 mA | - | Unshielded | 340mOhm Max | 65 @ 2.52MHz | 25MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628-RCFIXED IND 39UH 600MA 650 MOHM TH |
3,385 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 39 µH | ±5% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4632-RCFIXED IND 100UH 400MA 3 OHM TH |
4,711 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

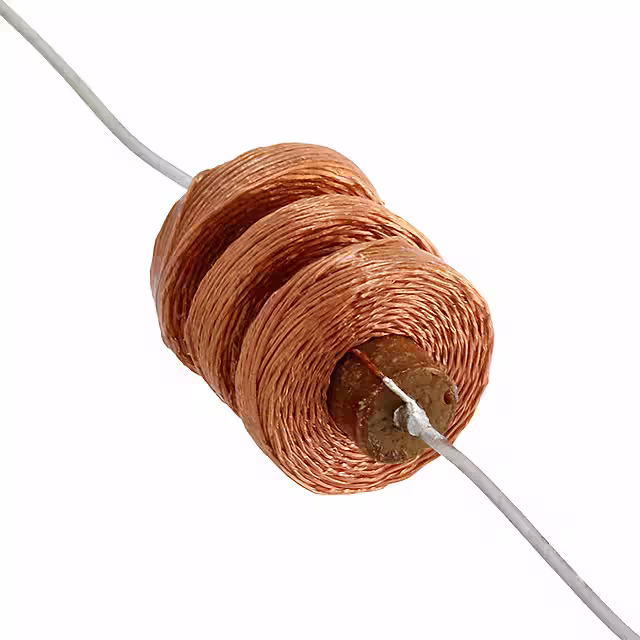

4652-RCFIXED IND 1MH 160MA 19 OHM TH |
4,400 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 mH | ±5% | 160 mA | - | Unshielded | 19Ohm Max | 59 @ 252kHz | 3.7MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
