Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM201212-12NKLFIXED IND 12NH 535MA 230MOHM SMD |
2,344 | - |
|
Datasheet | CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Polymer | 12 nH | ±10% | 535 mA | - | Unshielded | 230mOhm Max | 10 @ 100MHz | 3.3GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CW252016-2R2GFIXED IND 2.2UH 250MA 2.8OHM SMD |
3,517 | - |
|
Datasheet | CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±2% | 250 mA | - | Unshielded | 2.8Ohm Max | 25 @ 7.9MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM1038S-R50M-RCFIXED IND 500NH 23A 1.9 MOHM SMD |
1,553 | - |
|
Datasheet | PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 500 nH | ±20% | 23 A | 32A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
PM2100-271K-RCFIXED IND 270UH 3.4A 82 MOHM SMD |
4,214 | - |
|
Datasheet | PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 270 µH | ±10% | 3.4 A | - | Unshielded | 82mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.200" L x 1.000" W (30.48mm x 25.40mm) | - |
|

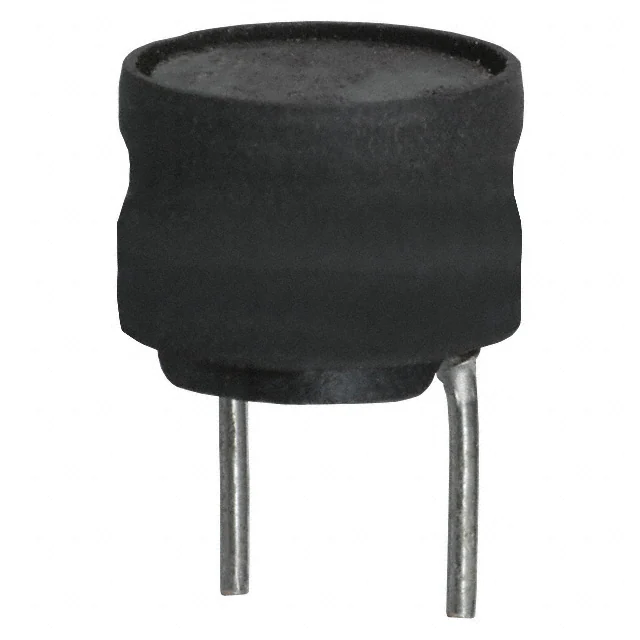

RL262-221J-RCFIXED IND 220UH 150MA 3 OHM TH |
3,411 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 150 mA | - | Unshielded | 3Ohm Max | 60 @ 796kHz | 4.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-681J-RCFIXED IND 680UH 100MA 6 OHM TH |
3,416 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 100 mA | - | Unshielded | 6Ohm Max | 60 @ 796kHz | 2.7MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-682J-RCFIXED IND 6.8MH 30MA 40 OHM TH |
1,848 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 80 @ 252kHz | 700kHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL855-821K-RCFIXED IND 820UH 310MA 3.8 OHM TH |
1,991 | - |
|
Datasheet | RL855 | Radial, Vertical Cylinder (Open) | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 310 mA | - | Unshielded | 3.8Ohm Max | 34 @ 790kHz | 1.7MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
SDE6603-8R2MFIXED IND 8.2UH SMD |
3,411 | - |
|
Datasheet | SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SRP4020-5R6MFIXED IND 5.6UH 2.4A 90 MOHM SMD |
2,083 | - |
|
Datasheet | SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 5.6 µH | ±20% | 2.4 A | 3.5A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
