Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN6028-R90YFIXED IND 900NH 4.6A 17 MOHM SMD |
3,903 | - |
|
Datasheet | SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 17mOhm Max | 12 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-3R0YFIXED IND 3UH 3.4A 30 MOHM SMD |
1,709 | - |
|
Datasheet | SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 30mOhm Max | 12 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R0MFIXED IND 6UH 2.5A 48 MOHM SMD |
3,836 | - |
|
Datasheet | SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 2.5 A | 2.5A | Shielded | 48mOhm Max | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN6028-6R2MFIXED IND 6.2UH 2.2A 63 MOHM SMD |
1,055 | - |
|
Datasheet | SRN6028 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 2.2 A | 2.2A | Shielded | 63mOhm Max | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

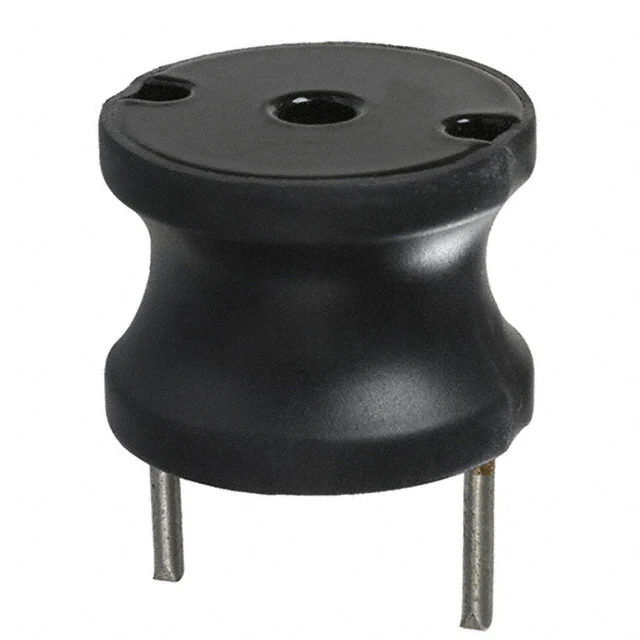

1130-2R2M-RCFIXED IND 2.2UH 21A 3 MOHM TH |
3,642 | - |
|
Datasheet | 1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
5523-RCFIXED IND 27UH 15A 10 MOHM TH |
2,592 | - |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 15 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.380" L (25.40mm x 35.05mm) | - |
|
|
5800-101-TR-RCFIXED IND 100UH 800MA 210MOHM TH |
4,294 | - |
|
Datasheet | 5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 800 mA | 1.1A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-102-TR-RCFIXED IND 1MH 240MA 2.5 OHM TH |
4,694 | - |
|
Datasheet | 5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 240 mA | 360mA | Unshielded | 2.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-103-TR-RCFIXED IND 10MH 76MA 24 OHM TH |
1,590 | - |
|
Datasheet | 5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 76 mA | 110mA | Unshielded | 24Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-120-TR-RCFIXED IND 12UH 2A 35 MOHM TH |
4,868 | - |
|
Datasheet | 5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2 A | 3.4A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
