Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0540R-100MSMD MOLDING POWER CHOKE |
735 | - |
|
Datasheet | CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 4 A | 4.8A | Shielded | 78.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
CSHB0520R-2R2MSMD MOLDING POWER CHOKE |
496 | - |
|
Datasheet | CSHB0520R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 7 A | 7.5A | Shielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.079" (2.00mm) |
|
CSAB1260A-330MSMD MOLDING POWER CHOKE |
380 | - |
|
Datasheet | CSAB1260A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 33 µH | ±20% | 5.3 A | 6A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.236" (6.00mm) |
|
|
CSAB1260A-101MSMD MOLDING POWER CHOKE |
2,679 | - |
|
Datasheet | CSAB1260A | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 100 µH | ±20% | 3.1 A | 3.5A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
|
|
CSAB1265A-1R0MSMD MOLDING POWER CHOKE |
380 | - |
|
Datasheet | CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 31 A | 42A | Shielded | 2.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSAB1265A-3R3MSMD MOLDING POWER CHOKE |
365 | - |
|
Datasheet | CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 18.5 A | 26A | Shielded | 5.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.504" L x 0.543" W (12.80mm x 13.80mm) | 0.248" (6.30mm) |
|
|
CSAB1260A-220MSMD MOLDING POWER CHOKE |
250 | - |
|
Datasheet | CSAB1260A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 6.8 A | 7.5A | Shielded | 39.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
|

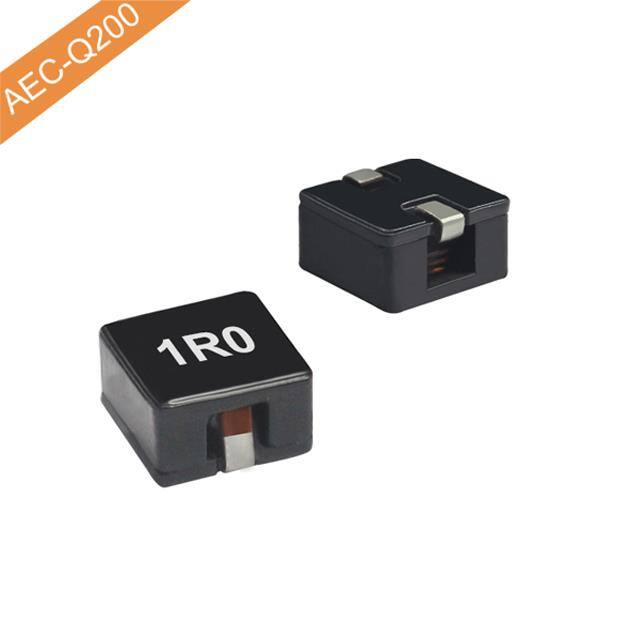

CSBX0640-2R2MSMD HIGH CURRENT POWER INDUCTOR |
983 | - |
|
Datasheet | CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 9 A | 16A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

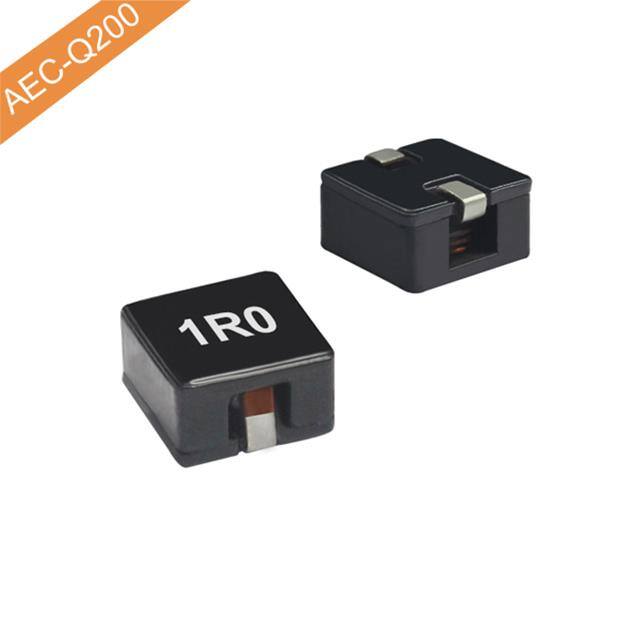

CSBL0640-2R2MSMD HIGH CURRENT POWER INDUCTOR |
975 | - |
|
Datasheet | CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 9 A | 13A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|
CSBL0640-1R0MSMD HIGH CURRENT POWER INDUCTOR |
958 | - |
|
Datasheet | CSBL0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1 µH | ±20% | 15.5 A | 19A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.146" (3.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
