Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTML0603F-R39K390N FER MULTIL SHLD INDUCTOR |
2,480 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±10% | 35 mA | - | Shielded | 1Ohm Max | 15 @ 25MHz | 110MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-R18K180N FER MULTIL SHLD INDUCTOR |
3,985 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 15 @ 25MHz | 165MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-R56K560N FER MULTIL SHLD INDUCTOR |
3,483 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±10% | 35 mA | - | Shielded | 1.5Ohm Max | 15 @ 25MHz | 95MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-R10K100N FER MULTIL SHLD INDUCTOR |
4,460 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 15 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-6R8K6.8 FER MULTIL SHLD INDUCTOR |
4,252 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 5 mA | - | Shielded | 1.7Ohm Max | 35 @ 4MHz | 20MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-4R7K4.7UH FER MULTIL SHLD INDUCTOR |
1,184 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 15 mA | - | Shielded | 2.1Ohm Max | 35 @ 10MHz | 33MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-100K10 FER MULTIL SHLD INDUCTOR |
1,359 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 3 mA | - | Shielded | 1.8Ohm Max | 30 @ 2MHz | 17MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
WRFI0402-S-10NJT-CTWirewound RF Inductor,0402,10nH, |
1,474 | - |
|
Datasheet | WRFI | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 10 nH | ±5% | 480 mA | - | - | 195mOhm | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

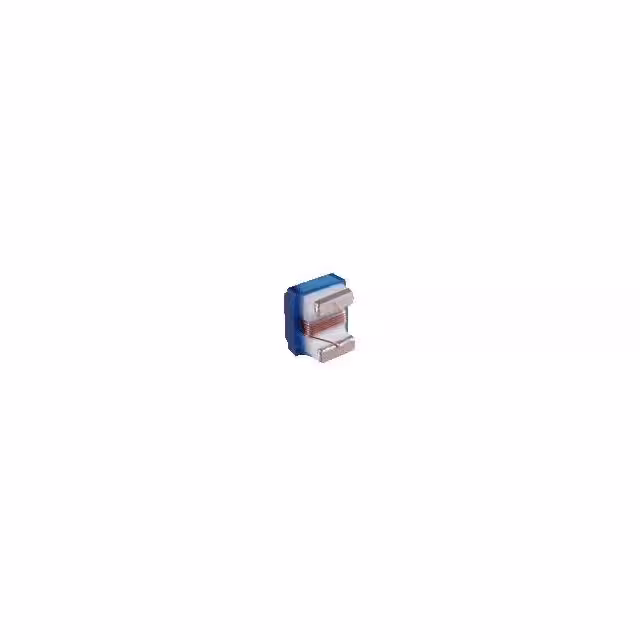

CT0603QWF-56NGSMD CER CORE WIRE-WOUND INDUCTOR |
1,239 | - |
|
Datasheet | ct0603qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±2% | - | - | - | 350mOhm | - | 2.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603QWF-R10GSMD CER CORE WIRE-WOUND INDUCTOR |
4,498 | - |
|
Datasheet | ct0603qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±2% | - | - | - | 680mOhm | - | 1.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603QWF-27NGSMD CER CORE WIRE-WOUND INDUCTOR |
2,854 | - |
|
Datasheet | ct0603qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±2% | - | - | - | 210mOhm | - | 3.7GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603QWF-3N9HSMD CER CORE WIRE-WOUND INDUCTOR |
3,890 | - |
|
Datasheet | ct0603qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.9 nH | ±3% | - | - | - | 59mOhm | - | 6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603QWF-10NGSMD CER CORE WIRE-WOUND INDUCTOR |
1,887 | - |
|
Datasheet | ct0603qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±2% | - | - | - | 110mOhm | - | 6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CM4532R18MSBWOUND CHIP INDUCTOR,4532, 0.18UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 nH | ±20% | 700 mA | - | Unshielded | 240mOhm Max | 35 @ 25.2MHz | 570MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CM3225R15MSBWOUND CHIP INDUCTOR,3225, 0.15UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±20% | 450 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 860MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM4532R22MSBWOUND CHIP INDUCTOR,4532, 0.22UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±20% | 665 mA | - | Unshielded | 250mOhm Max | 40 @ 25.2MHz | 505MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM45325R6KSBWOUND CHIP INDUCTOR,4532, 5.60UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM3225R33MSBWOUND CHIP INDUCTOR,3225, 0.33UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 nH | ±20% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 520MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM3225R22MSBWOUND CHIP INDUCTOR,3225, 0.22UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±20% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 560MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM4532680KSBWOUND CHIP INDUCTOR,4532, 68.00U |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 9.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
