Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC8-4R5-RFIXED IND 4.5UH 8A 18.6 MOHM SMD |
4,251 | - |
|
Datasheet | HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.5 µH | ±20% | 8 A | 13.5A | Unshielded | 18.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
HC8LP-R75-RFIXED IND 750NH 15.6A 4.7MOHM SM |
2,510 | - |
|
Datasheet | HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 15.6 A | 24A | Unshielded | 4.7mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|

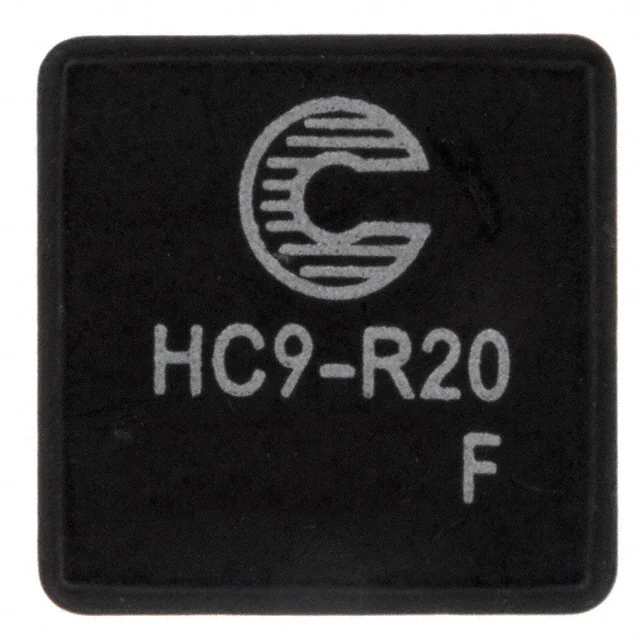

HC9-R20-RFIXED IND 200NH 46.7A 0.5MOHM SM |
1,700 | - |
|
Datasheet | HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±15% | 46.7 A | 95A | Unshielded | 0.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
HC8LP-R15-RFIXED IND 150NH 29A 1.4 MOHM SMD |
1,539 | - |
|
Datasheet | HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 29 A | 56A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
|
HC8LP-R39-RFIXED IND 390NH 20.2A 2.8MOHM SM |
3,374 | - |
|
Datasheet | HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±20% | 20.2 A | 34A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|

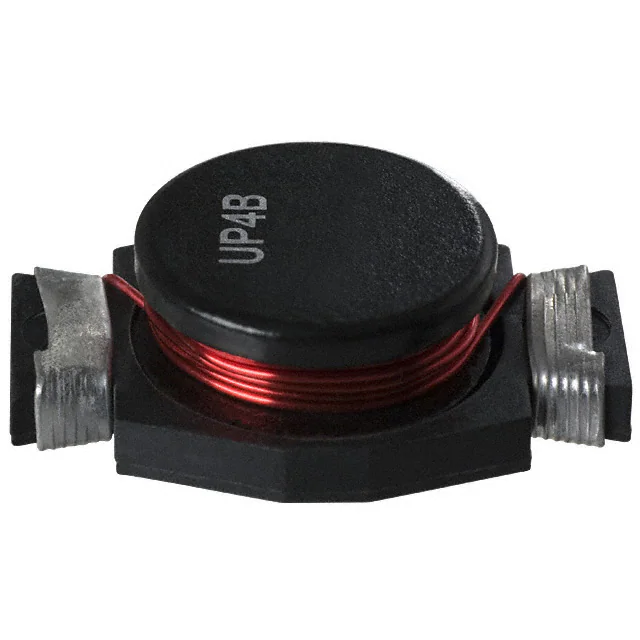

UP4B-3R3-RFIXED IND 3.3UH 11A 5.7 MOHM SMD |
1,282 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 11 A | 20.2A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
|
HC8LP-1R2-RFIXED IND 1.2UH 12.4A 7.5MOHM SM |
2,884 | - |
|
Datasheet | HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 12.4 A | 18.7A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
|
HCV1605R1-R500-RIND ER 15.5X5 0.500UH 50A SMT |
2,348 | - |
|
Datasheet | HCVR1 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±10% | 20 A | 45A | Unshielded | 1.98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.196" (4.98mm) |
|
HCM1707-100-RFIXED IND 10UH 14A 10 MOHM SMD |
3,864 | - |
|
Datasheet | HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 14 A | 18A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-1R5-RFIXED IND 1.5UH 40A 2.15MOHM SMD |
3,275 | - |
|
Datasheet | HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 40 A | 40A | Shielded | 2.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
