Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305-2R2-RFIXED IND 2.2UH 15A 5.29MOHM SMD |
1,137 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 15 A | 18A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCMA1307-1R5-RFIXED IND 1.5UH |
4,523 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | 1.5 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|
HCM1A1307-100-RFIXED IND 10UH 6.3A 17.5MOHM SMD |
2,024 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6.3 A | 12A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-1R0-RFIXED IND 1UH 28A 1.77 MOHM SMD |
4,410 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 28 A | 30A | Shielded | 1.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-330-RFIXED IND 33UH 4.7A 45 MOHM SMD |
2,981 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 4.7 A | 6A | Shielded | 45mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-3R3-RFIXED IND 3.3UH 15.6A 4.3MOHM SM |
4,673 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 15.6 A | 20A | Shielded | 4.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-4R7-RFIXED IND 4.7UH 11A 7.5MOHM SMD |
1,423 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 11 A | 15A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-R47-RFIXED IND 470NH 36.5A 1.05 MOHM |
4,096 | - |
|
Datasheet | HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 36.5 A | 72A | Shielded | 1.05mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|

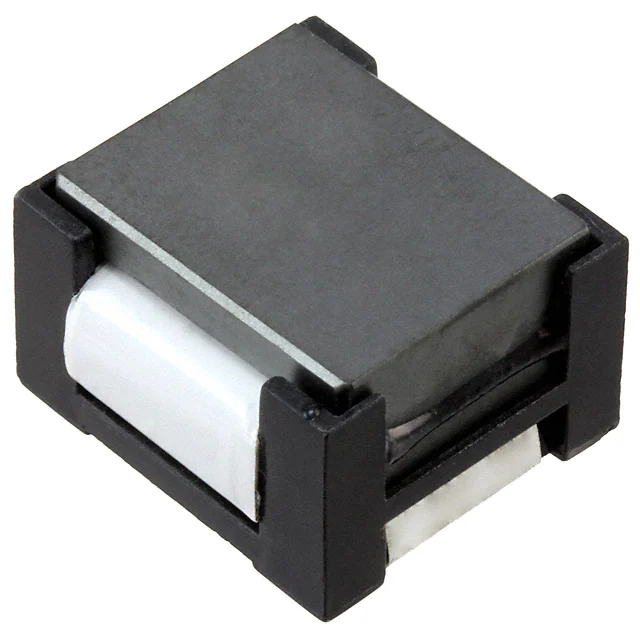

HC2-4R7TR-RFIXED IND 4.7UH 17A 4.6 MOHM SMD |
2,687 | - |
|
Datasheet | HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 17 A | 21.25A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-6R0TR-RFIXED IND 6UH 17A 4.6 MOHM SMD |
2,196 | - |
|
Datasheet | HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
