Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

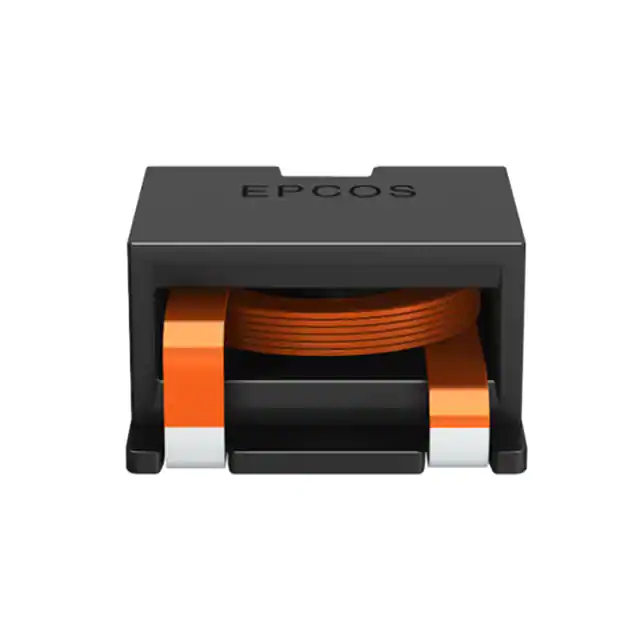

B82559A5472A016FIXED IND 4.7UH 17A 2.6MOHM SMD |
2,578 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 17 A | 18.6A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.406" (10.30mm) |
|

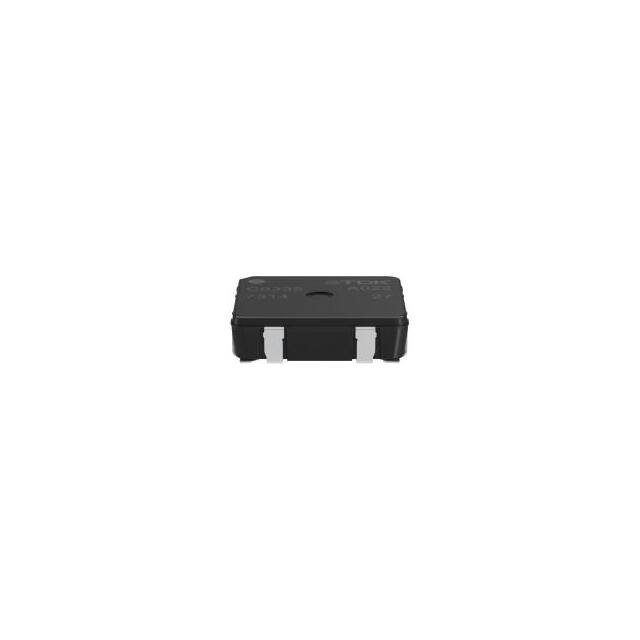

B82453C0335A022FIXED IND |
4,764 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82111B0000C022FIXED IND 9UH 6A 12 MOHM TH |
4,117 | - |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 9 µH | ±20% | 6 A | - | Unshielded | 12mOhm | - | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.354" Dia x 1.339" L (9.00mm x 34.00mm) | - |
|
B82111B0000C023FIXED IND 15UH 4A 24 MOHM TH |
3,272 | - |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4 A | - | Unshielded | 24mOhm | - | 120MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.335" Dia x 1.339" L (8.50mm x 34.00mm) | - |
|
B82111B0000C024FIXED IND 25UH 3A 46 MOHM TH |
1,880 | - |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 µH | ±20% | 3 A | - | Unshielded | 46mOhm | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.335" Dia x 1.339" L (8.50mm x 34.00mm) | - |
|
B82111B0000C021FIXED IND 5UH 10A 5 MOHM TH |
4,170 | - |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 5mOhm | - | 175MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.374" Dia x 1.339" L (9.50mm x 34.00mm) | - |
|
B82559A2102A019FIXED IND 1UH 1.2 MOHM SMD |
4,852 | - |
|
Datasheet | ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | - | 37.5A | Shielded | 1.2mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.358" (9.10mm) |
|
PCM120T-1R2N-DFIXED IND 1.2UH 35.2A 1.45OHM SM |
3,214 | - |
|
Datasheet | PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 1.2 µH | ±30% | 35.2 A | 38.7A | Shielded | 1.45mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
|
PCM120T-8R2M-DFIXED IND 8.2UH 14.1A 9 OHM SMD |
1,261 | - |
|
Datasheet | PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 14.1 A | 15A | Shielded | 9mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
B82500C0000A005FIXED IND 820UH 500MA 2.5 OHM TH |
4,261 | - |
|
Datasheet | B82500 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 500 mA | - | Unshielded | 2.5Ohm | - | 3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.394" Dia x 1.260" L (10.00mm x 32.00mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
