Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCM120T-2R2M-DFIXED IND 2.2UH 27.1A 2.45OHM SM |
4,845 | - |
|
Datasheet | PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 27.1 A | 24.8A | Shielded | 2.45mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|

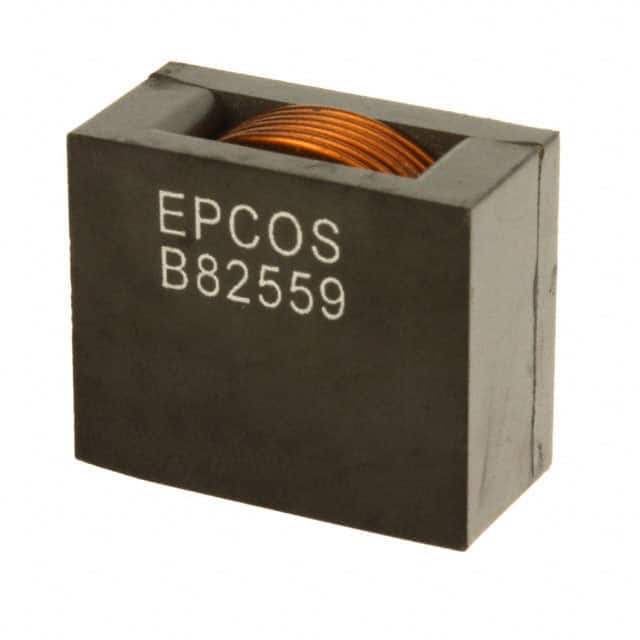

B82559A7153A025FIXED IND 15UH 2.55 MOHM SMD |
1,687 | - |
|
Datasheet | ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±7% | - | 14A | Shielded | 2.55mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.520" (13.20mm) |
|
B82559A2102A016FIXED IND 1UH 31A 1.15 MOHM SMD |
3,049 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 31 A | 34A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.311" (7.90mm) |
|
|
B82559A3152A016FIXED IND 1.5UH 33A 1.6MOHM SMD |
3,805 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 33 A | 37A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.343" (8.70mm) |
|
|
B82559A5332A016FIXED IND 3.3UH 25A 2.6MOHM SMD |
4,881 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25 A | 28A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.406" (10.30mm) |
|
|
B82559A0203A016FIXED IND 20UH 10A 13.25MOHM SMD |
4,578 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 10 A | 11.3A | Shielded | 13.25mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.406" (10.30mm) |
|
|
B82559A0303A016FIXED IND 30UH 8.5A 16.5MOHM SMD |
3,519 | - |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 30 µH | ±10% | 8.5 A | 9.2A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.445" (11.30mm) |
|
B82559A6682A019FIXED IND 6.8UH 8.25 MOHM SMD |
4,079 | - |
|
Datasheet | ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | - | 16.4A | Shielded | 8.25mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.358" (9.10mm) |
|
|
B82559A9153A019FIXED IND 15UH 12.15 MOHM SMD |
3,711 | - |
|
Datasheet | ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | - | 11.4A | Shielded | 12.15mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.390" (9.90mm) |
|
|
B82559A4222A019FIXED IND 2.2UH 2.2 MOHM SMD |
1,585 | - |
|
Datasheet | ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 32.2A | Shielded | 2.2mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.398" (10.10mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
