IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA151W1200EHIGBT MODULE 1200V 220A 695W |
8,477 | - |
|
Datasheet | - | - | Box | Active | PT | Three Phase Inverter | 1200 V | 220 A | 695 W | 2.1V @ 15V, 150A | 500 µA | - | Standard | No | -40°C ~ 125°C (TJ) | - | - |
|
|
MIXA20WB1200TMLIGBT MOD 1200V 28A MINIPACK2 |
7,837 | - |
|
Datasheet | - | MiniPack2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 100 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | MiniPack2 |
|
CM100TX-24S1IGBT MOD 1200V 100A 625W |
3,756 | - |
|
Datasheet | - | Module | Tray | Active | - | Three Level Inverter | 1200 V | 100 A | 625 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
9,271 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
9,087 | - |
|
Datasheet | - | EMIPAK2 | Bulk | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK2 |
|

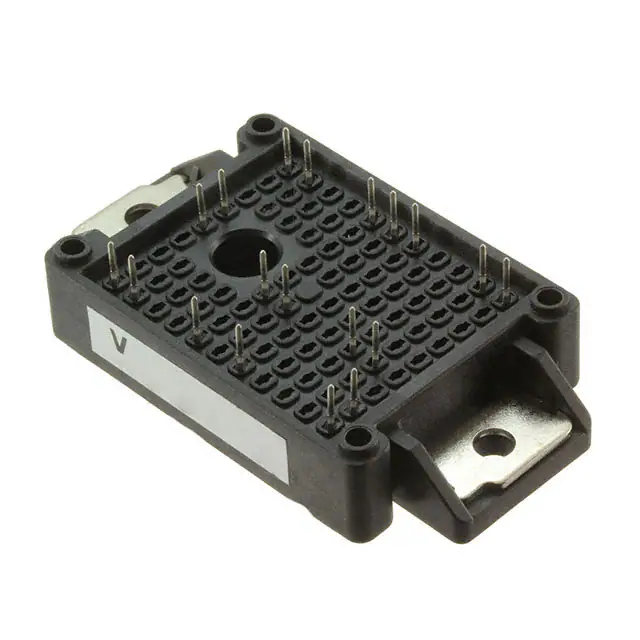

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
7,623 | - |
|
Datasheet | - | EMIPAK-1B | Bulk | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-1B |
|

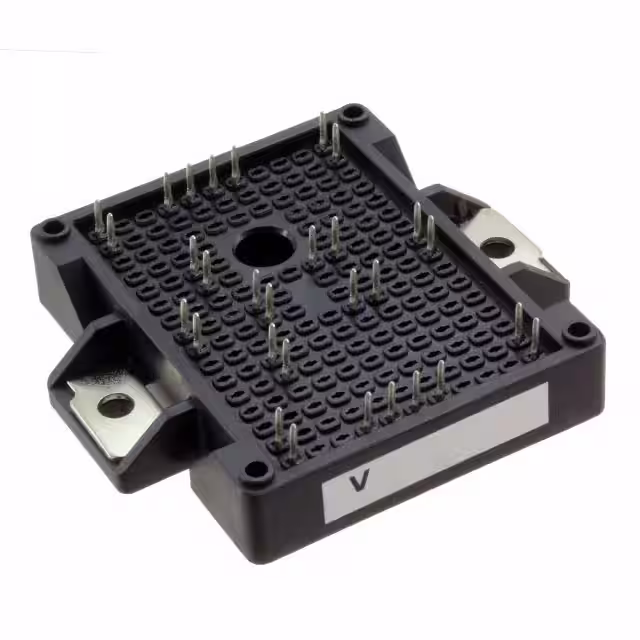

VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
8,855 | - |
|
Datasheet | - | EMIPAK-2B | Bulk | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
3,404 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GA100TS120UPBFIGBT MOD 1200V 182A INT-A-PAK |
4,456 | - |
|
Datasheet | - | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 1200 V | 182 A | 520 W | 3V @ 15V, 100A | 1 mA | 18.67 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GA200HS60S1PBFIGBT MOD 600V 480A INT-A-PAK |
2,070 | - |
|
Datasheet | - | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 600 V | 480 A | 830 W | 1.21V @ 15V, 200A | 1 mA | 32.5 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GA200SA60UPIGBT MOD 600V 200A 500W SOT227 |
2,980 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GA200TH60SIGBT MOD 600V 260A INT-A-PAK |
6,690 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 600 V | 260 A | 1042 W | 1.9V @ 15V, 200A (Typ) | 5 µA | 13.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GA300TD60SIGBT MOD 600V 530A INT-A-PAK |
6,513 | - |
|
Datasheet | - | Dual INT-A-PAK (3 + 8) | Bulk | Obsolete | - | Half Bridge | 600 V | 530 A | 1136 W | 1.45V @ 15V, 300A | 750 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GA400TD60SIGBT MOD 600V 750A INT-A-PAK |
2,493 | - |
|
Datasheet | - | Dual INT-A-PAK (3 + 8) | Bulk | Obsolete | - | Half Bridge | 600 V | 750 A | 1563 W | 1.52V @ 15V, 400A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GB05XP120KTPBFIGBT MODULE 1200V 0 76W MTP |
6,927 | - |
|
Datasheet | - | 12-MTP Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 12 A | 76 W | - | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-GB100LH120NIGBT MOD 1200V 200A INT-A-PAK |
9,156 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 200 A | 833 W | 1.77V @ 15V, 100A (Typ) | 1 mA | 8.96 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100LP120NIGBT MOD 1200V 200A INT-A-PAK |
6,999 | - |
|
Datasheet | - | INT-A-Pak | Bulk | Obsolete | - | Single | 1200 V | 200 A | 658 W | 1.8V @ 15V, 100A (Typ) | 1 mA | 7.43 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB100NH120NIGBT MOD 1200V 200A INT-A-PAK |
5,526 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 200 A | 833 W | 2.35V @ 15V, 100A | 5 mA | 8.58 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100TH120NIGBT MOD 1200V 200A INT-A-PAK |
4,636 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 833 W | 2.35V @ 15V, 100A | 5 mA | 8.58 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB100TH120UIGBT MOD 1200V 200A INT-A-PAK |
4,603 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 200 A | 1136 W | 3.6V @ 15V, 100A | 5 mA | 8.45 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
