IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GB100TP120NIGBT MOD 1200V 200A INT-A-PAK |
7,106 | - |
|
Datasheet | - | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 650 W | 2.2V @ 15V, 100A | 5 mA | 7.43 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB100TS60NPBFIGBT MOD 600V 108A INT-A-PAK |
3,722 | - |
|
Datasheet | - | INT-A-Pak | Bulk | Obsolete | NPT | Half Bridge | 600 V | 108 A | 390 W | 2.85V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB150TH120NIGBT MOD 1200V 300A INT-A-PAK |
3,293 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1008 W | 2.35V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB15XP120KTPBFIGBT MODULE 1200V 30A 187W MTP |
3,300 | - |
|
Datasheet | - | 12-MTP Module | Bulk | Active | NPT | Three Phase Inverter | 1200 V | 30 A | 187 W | 3.66V @ 15V, 30A | 250 µA | 1.95 nF @ 30 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-GB200TH120NIGBT MOD 1200V 360A INT-A-PAK |
4,623 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 360 A | 1136 W | 2.35V @ 15V, 200A | 5 mA | 14.9 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB200TH120UIGBT MOD 1200V 330A INT-A-PAK |
3,214 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 330 A | 1316 W | 3.6V @ 15V, 200A | 5 mA | 16.9 nF @ 30 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300AH120NIGBT MOD 1200V 620A INT-A-PAK |
8,200 | - |
|
Datasheet | - | Double INT-A-PAK (5) | Bulk | Obsolete | - | Single | 1200 V | 620 A | 2500 W | 1.9V @ 15V, 300A (Typ) | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300LH120NIGBT MOD 1200V 500A INT-A-PAK |
5,360 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 500 A | 1645 W | 2V @ 15V, 300A (Typ) | 5 mA | 21.2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300TH120NIGBT MOD 1200V 500A INT-A-PAK |
8,201 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 500 A | 1645 W | 2.45V @ 15V, 300A | 5 mA | 21.2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB400TH120NIGBT MOD 1200V 800A INT-A-PAK |
6,923 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 800 A | 2604 W | 1.9V @ 15V, 400A (Typ) | 5 mA | 32.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB50TP120NIGBT MOD 1200V 100A INT-A-PAK |
8,014 | - |
|
Datasheet | - | INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 100 A | 446 W | 2.15V @ 15V, 50A | 5 mA | 4.29 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB50YF120NIGBT MOD 1200V 66A ECONO2 4PACK |
9,302 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | - | 1200 V | 66 A | 330 W | 4.5V @ 15V, 75A | 250 µA | - | Standard | No | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
|
VS-GB600AH120NIGBT MOD 1200V 910A INT-A-PAK |
4,468 | - |
|
Datasheet | - | Double INT-A-PAK (5) | Bulk | Obsolete | - | Single | 1200 V | 910 A | 3125 W | 1.9V @ 15V, 600A (Typ) | 5 mA | 41 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB75TP120NIGBT MOD 1200V 150A INT-A-PAK |
8,436 | - |
|
Datasheet | - | INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 543 W | 2.35V @ 15V, 75A | 5 mA | 5.52 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB75YF120NIGBT MOD 1200V 100A ECONO2 4PACK |
2,777 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | - | 1200 V | 100 A | 480 W | 4.5V @ 15V, 100A | 250 µA | - | Standard | No | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
|
VS-GB75YF120UTIGBT MOD 1200V 100A ECONO2 4PACK |
2,577 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | - | 1200 V | 100 A | 480 W | 4.5V @ 15V, 100A | 250 µA | - | Standard | Yes | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
VS-GB90DA120UIGBT MOD 1200V 149A 862W SOT227 |
2,552 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.8V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT100TP120NIGBT MOD 1200V 180A INT-A-PAK |
3,031 | - |
|
Datasheet | - | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 180 A | 652 W | 2.35V @ 15V, 100A | 5 mA | 12.8 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|

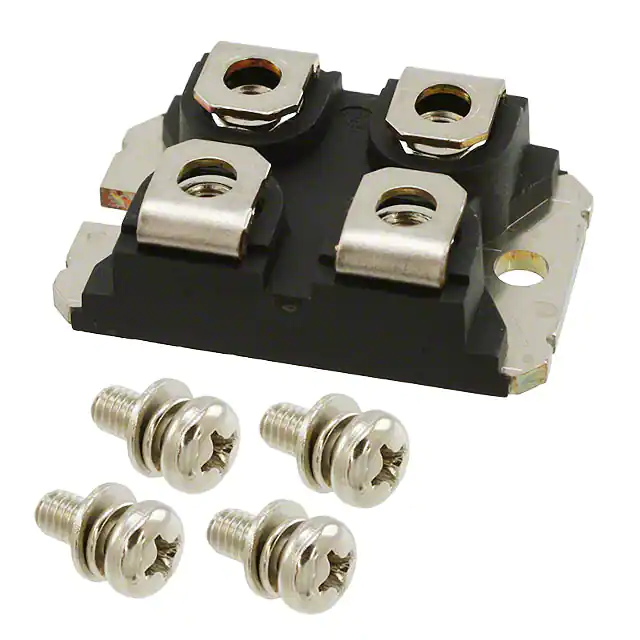

VS-GT175DA120UIGBT MOD 1200V 288A 1087W SOT227 |
5,501 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 1200 V | 288 A | 1087 W | 2.1V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT400TH120NIGBT MOD 1200V 600A INT-A-PAK |
8,411 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 8) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 600 A | 2119 W | 2.15V @ 15V, 400A | 5 mA | 28.8 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
IGBT Modules FAQ
Common questions about selecting, comparing and sourcing IGBT Modules components through Winsun (HK) Electronics.
What should I check when selecting IGBT Modules components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific IGBT Modules part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find IGBT Modules parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for IGBT Modules components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
