IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

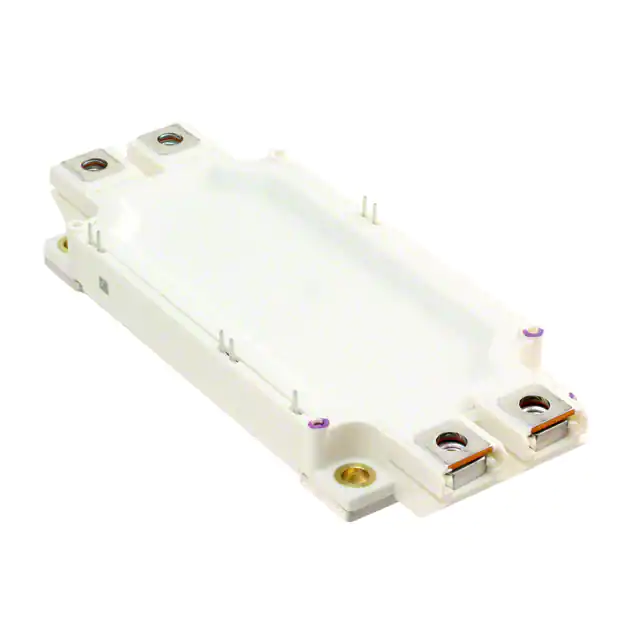

FF450R12ME4BOSA1IGBT MOD 1200V 675A 2250W |
10 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS100R12KE3BOSA1IGBT MOD 1200V 140A 480W |
10 | - |
|
Datasheet | - | Module | Tray | Not For New Designs | NPT | Single | 1200 V | 140 A | 480 W | 2.15V @ 15V, 100A | 5 mA | 7.1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FF600R12KE4PBOSA1IGBT MODULE 1200V |
2 | - |
|
Datasheet | C | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MM-1 |
|

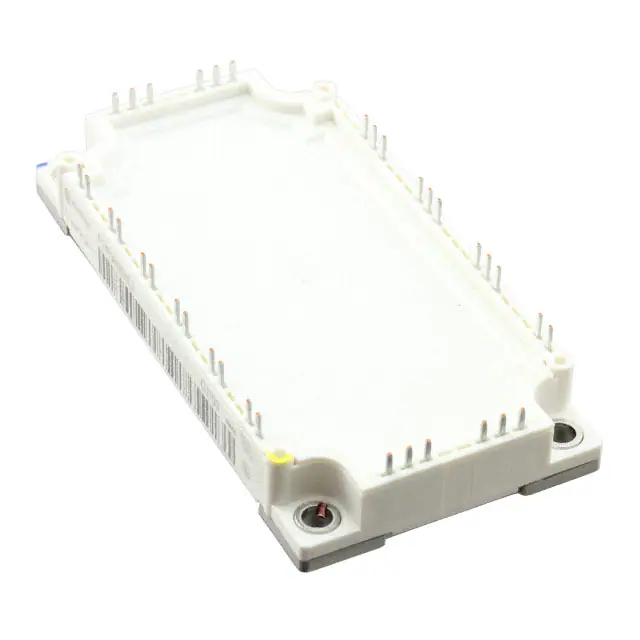

FS150R06KE3BOSA1IGBT MOD 600V 150A 430W |
2 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 150 A | 430 W | 1.9V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

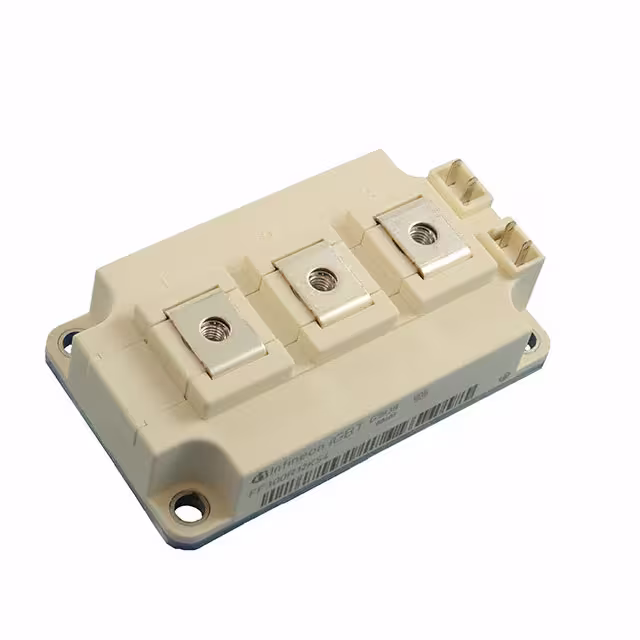

FF300R12KS4HOSA1IGBT MOD 1200V 370A 1950W |
23 | - |
|
Datasheet | C | Module | Tray | Active | - | 2 Independent | 1200 V | 370 A | 1950 W | 3.75V @ 15V, 300A | 5 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF400R12KE3HOSA1IGBT MOD 1200V 580A 2000W |
20 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FS200R06KE3BOSA1IGBT MOD 600V 200A 600W |
7 | - |
|
Datasheet | EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 200 A | 600 W | 1.9V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT4B9BOSA1IGBT MOD 1200V 150A 750W |
6 | - |
|
Datasheet | EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF300R17KE3HOSA1IGBT MODULE 1700V 1450W |
15 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | 1450 W | 2.45V @ 15V, 300A | 3 mA | 27 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

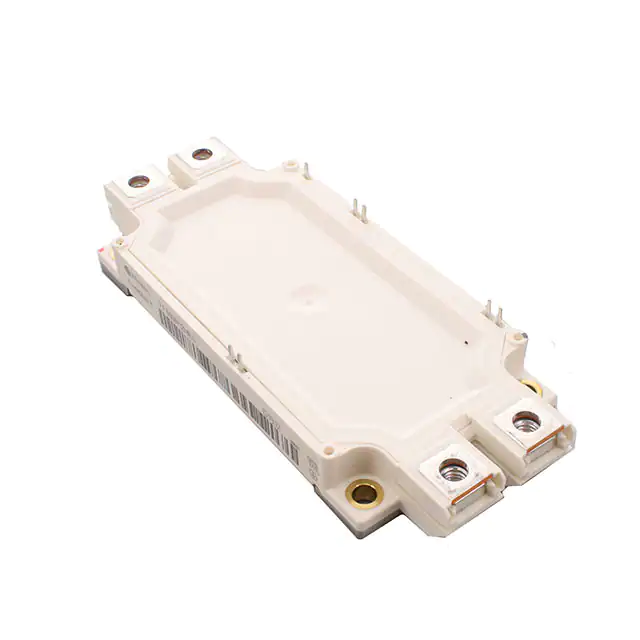

FF600R12ME4BOSA1IGBT MODULE 1200V 4050W |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | - | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF900R12IP4BOSA2IGBT MOD 1200V 900A 5100W |
4 | - |
|
Datasheet | PrimePack™2 | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF900R12IE4PBOSA1IGBT MOD 1200V 900A 20MW |
6 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 900 A | - | 2.1V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

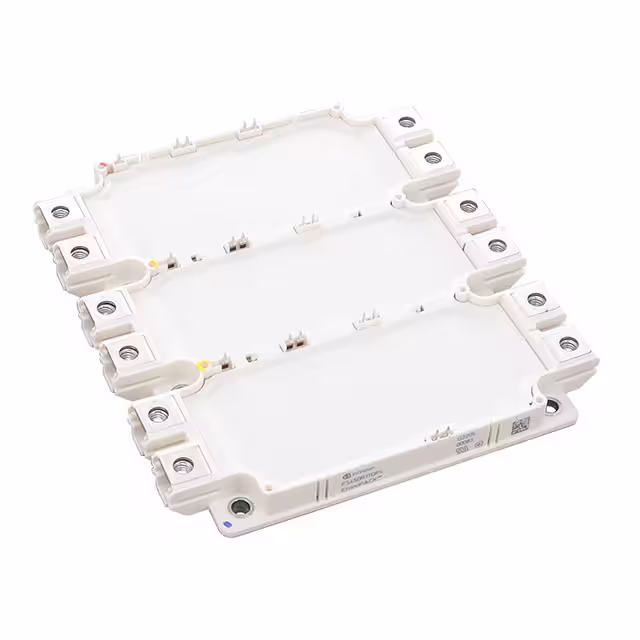

FS450R17OP4BPSA1MEDIUM POWER ECONO AG-ECONOPP-2 |
4 | - |
|
Datasheet | EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 450 A | - | 2.2V @ 15V, 450A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOPP-2-1 |
|
FZ1200R12HP4HOSA2IGBT MOD 1200V 1790A 7150W |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 1790 A | 7150 W | 2.05V @ 15V, 1200A | 5 mA | 74 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ2400R17HP4HOSA2IGBT MODULE 1700V 400A |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | - | Single Switch | 1700 V | 2400 A | 15500 W | 2.25V @ 15V, 2.4kA | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FZ1600R17HP4B2BOSA2IGBT MODULE 1700V 1600A |
10 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | A-IHV130-3 |
|
|
FZ1200R17HP4B2BOSA2IGBT MOD 1700V 1200A 7800W |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1200 A | 7800 W | 2.25V @ 15V, 1200A | 5 mA | 97 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

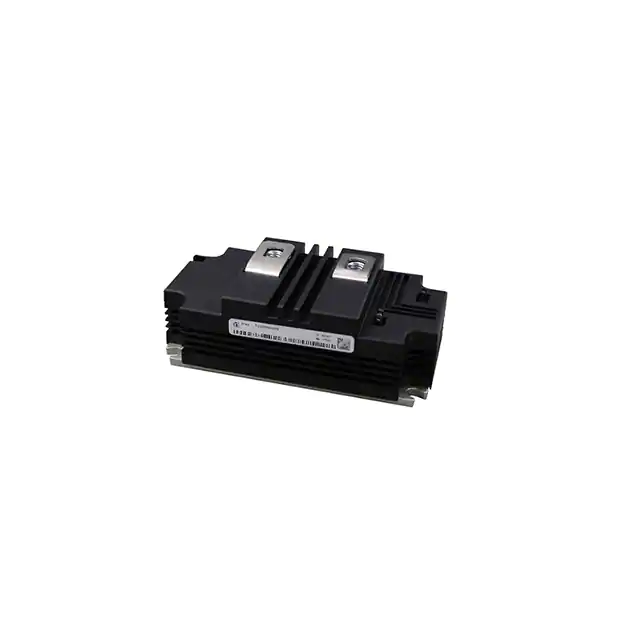

FZ250R65KE3NPSA1IGBT MOD 6500V 500A 4800W |
4 | - |
|
Datasheet | - | Module | Tray | Active | - | Single | 6500 V | 500 A | 4800 W | 3.4V @ 15V, 250A | 5 mA | 69 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
APT75GT120JU2IGBT MOD 1200V 100A 416W SOT227 |
66 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT200GN60JIGBT MOD 600V 283A 682W ISOTOP |
35 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 25 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
