IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF750R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 750 A | - | 1.75V @ 15V, 750A | 45 µA | 115 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF450R17ME4BOSA1IGBT MOD 1700V 600A 2500W |
7 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ600R17KE3HOSA1IGBT MOD 1700V 840A 3150W |
2 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single | 1700 V | 840 A | 3150 W | 2.45V @ 15V, 600A | 3 mA | 54 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
F3L400R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
8 | - |
|
Datasheet | * | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF900R17ME7B11BPSA1MEDIUM POWER ECONO |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 900 A | - | 1.85V @ 15V, 900A | 5 mA | 93.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|

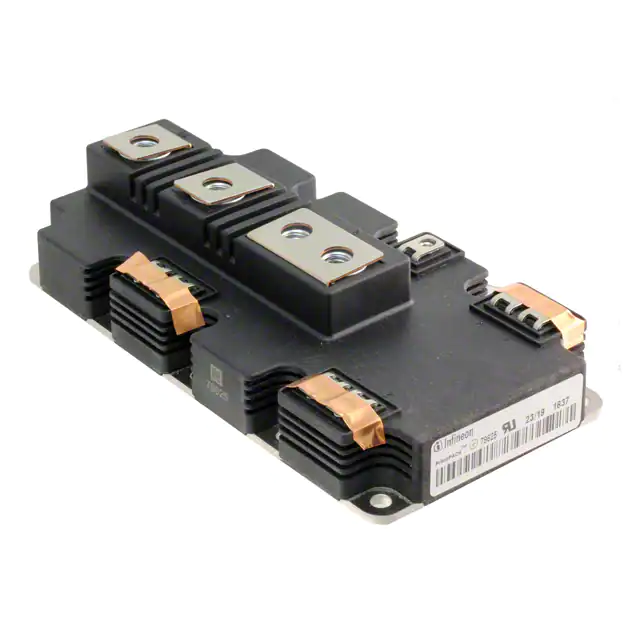

FF600R12IP4BOSA1IGBT MOD 1200V 600A 3350W |
3 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF650R17IE4BOSA1IGBT MODULE 1700V 4150W |
4 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | - | 2 Independent | 1700 V | - | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF900R12IE4BOSA1IGBT MOD 1200V 900A 5100W |
3 | - |
|
Datasheet | PrimePack™2 | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF1000R17IE4BOSA1IGBT MODULE 1700V 6250W |
6 | - |
|
Datasheet | PrimePACK™3 | Module | Tray | Active | - | 2 Independent | 1700 V | - | 6250 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1200R17IP5BPSA1IGBT MOD 1700V 1200A 20MW |
8,107 | - |
|
Datasheet | PrimePack™2 | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 1200 A | - | 2.3V @ 15V, 1200A | 5 mA | 68 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FS950R08A6P2BBPSA1IGBT MODULE 750V 950A |
5 | - |
|
Datasheet | HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 950 A | 870 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-HYBRIDD-2 |
|
FS500R17OE4DBOSA1IGBT MOD 1700V 740A 3000W |
4 | - |
|
Datasheet | EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 740 A | 3000 W | 2.3V @ 15V, 500A | 3 mA | 40 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1400R17IP4BOSA1IGBT MODULE 1700V 1400A |
6 | - |
|
Datasheet | PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 1400 A | 955000 W | 2.2V @ 15V, 1400A | 5 mA | 110 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ1600R17KE3NOSA1IGBT MOD 1700V 2300A 8950W |
2 | - |
|
Datasheet | - | Module | Tray | Not For New Designs | NPT | Three Phase Inverter | 1700 V | 2300 A | 8950 W | 2.45V @ 15V, 600A | 5 mA | 145 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FZ2400R12HP4HOSA2IGBT MODULE 1200V 3460A |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | - | Single Switch | 1200 V | 3460 A | 12500 W | 2.05V @ 15V, 2400A | 5 mA | 150 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF1800R17IP5BPSA1IGBT MODULE 1700V 1800A |
2 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 1800 A | - | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FZ3600R12HP4HOSA2IGBT MODULE 1200V 4930A |
3 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 4930 A | 19000 W | 2.05V @ 15V, 3600A | 5 mA | 225 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF225R65T3E3BPSA1IHV IHM T XHP 3 3-6 5K AG-XHP3K6 |
3 | - |
|
Datasheet | XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 5900 V | 225 A | 1000000 W | 3.4V @ 15V, 225A | 5 mA | 65.6 nF @ 25 V | Standard | No | 125°C (TJ) | Chassis Mount | AG-XHP3K65 |
|
|
FZ1600R33HE4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 1600 A | 3600 W | 2.65V @ 15V, 1.6kA | 5 mA | 187 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ1800R45HL4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB19 |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | 3 Independent | 4500 V | 1800 A | 4000 W | 2.8V @ 15V, 1.8kA | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190 |
