IGBT Modules
Browse available IGBT Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS25R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
9 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FP15R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
9 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|

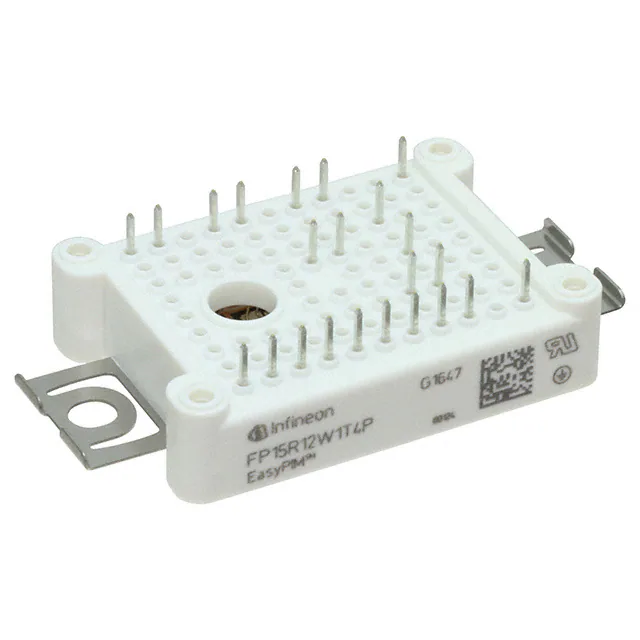

FP15R12W1T4PBPSA1IGBT MOD 1200V 30A 20MW |
29 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | - | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

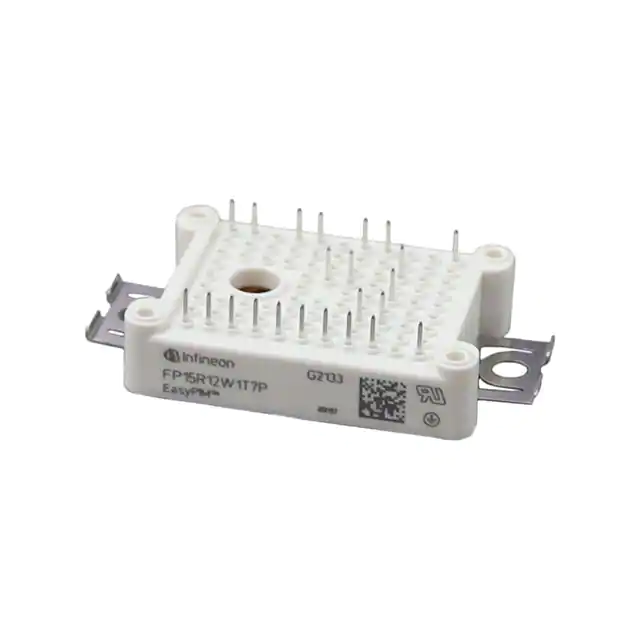

FP15R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-1 |
13 | - |
|
Datasheet | EasyPIM™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
FP25R12W1T7B11BPSA1IGBT MODULE 1200V 25A 20MW EASY |
24 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A (Typ) | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C | Chassis Mount | AG-EASY1B-2 |
|
|
FP25R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
13 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
F3L75R12W1H3B27BOMA1IGBT MOD 1200V 45A 275W |
13 | - |
|
Datasheet | - | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 45 A | 275 W | 1.7V @ 15V, 30A | 1 mA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
VS-ENM040M60PPOWER MODULE |
5 | - |
|
Datasheet | * | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP25R12W2T7B11BPSA1LOW POWER EASY |
2 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|

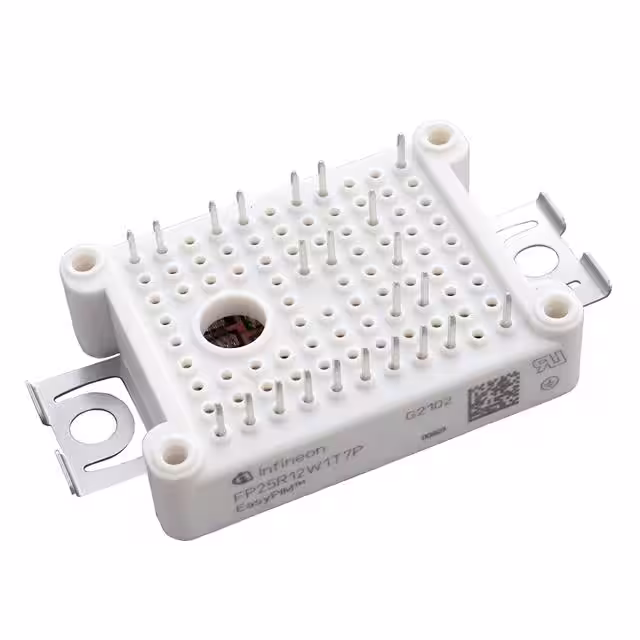

FP25R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-711 |
20 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FS75R17W2E4PB11BPSA1LOW POWER EASY |
18 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 45 A | - | 2.3V @ 15V, 75A | 35 µA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | - | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|
DF150R12W1H3FB11BOMA1IGBT MODULE LOW POWER EASY |
24 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12W2T7B11BOMA1LOW POWER EASY |
11 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
NXH100B120H3Q0PGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
23 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM (55x32.5) |
|
|
NXH100B120H3Q0PTGIGBT MODULE 1200V 50A 186W 22PIM |
22 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 50 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM (55x32.5) |
|
|
NXH100B120H3Q0SGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
20 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM/Q0BOOST (55x32.5) |
|
FS75R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
6 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | - | - | 13 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
VS-ENK025C65SPOWER MODULE |
8 | - |
|
Datasheet | * | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F3L75R07W2E3B11BOMA1IGBT MODULE 650V 95A 250W |
12 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
