IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT100DH60T3GIGBT MODULE 600V 150A 340W SP3 |
2,644 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGV30H60T3GIGBT MODULE 600V 50A 90W SP3 |
5,899 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50DH120T3GIGBT MODULE 1200V 75A 277W SP3 |
5,746 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H60T3GIGBT MODULE 600V 50A 90W SP3 |
6,093 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGL60DH120T3GIGBT MODULE 1200V 80A 280W SP3 |
4,439 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 1200 V | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGV15H120T3GIGBT MODULE 1200V 25A 115W SP3 |
3,188 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 25 A | 115 W | 2.1V @ 15V, 15A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

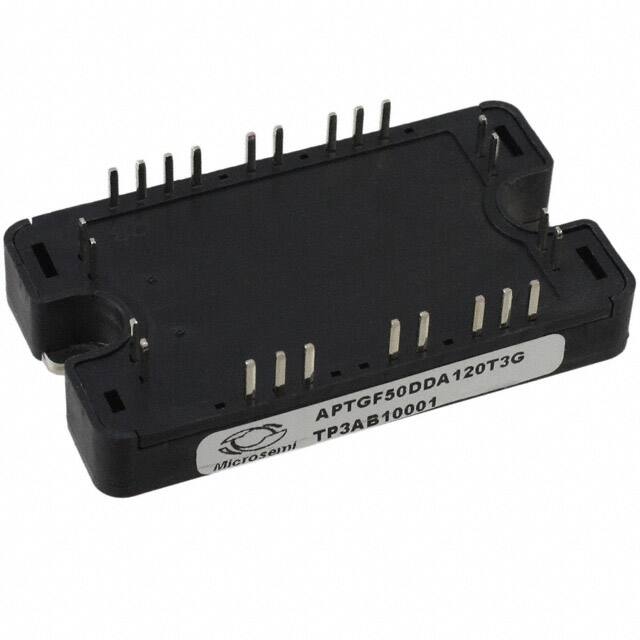

APTGF50DDA120T3GIGBT MODULE 1200V 70A 312W SP3 |
4,025 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT75A1202GIGBT MODULE 1200V 110A 357W SP2 |
3,371 | - |
|
Datasheet | - | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 50 µA | 5.34 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP2 |
|
|
APTGF15X120T3GIGBT MODULE 1200V 25A 140W SP3 |
4,915 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 1200 V | 25 A | 140 W | 3.7V @ 15V, 15A | 250 µA | 1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|

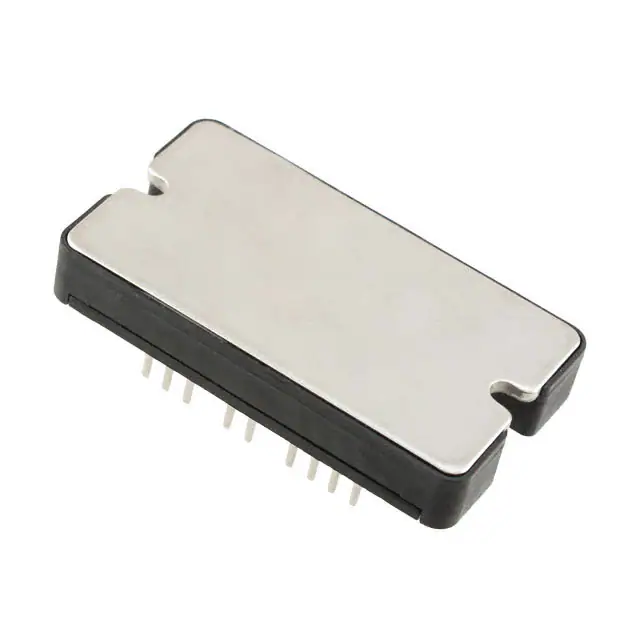

APTGF90DH60T3GIGBT MODULE 600V 110A 416W SP3 |
4,463 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 600 V | 110 A | 416 W | 2.5V @ 15V, 100A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
