IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT75A170D1GIGBT MODULE 1700V 120A 520W D1 |
2,732 | - |
|
Datasheet | - | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT75SK170D1GIGBT MODULE 1700V 120A 520W D1 |
5,043 | - |
|
Datasheet | - | D1 | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|

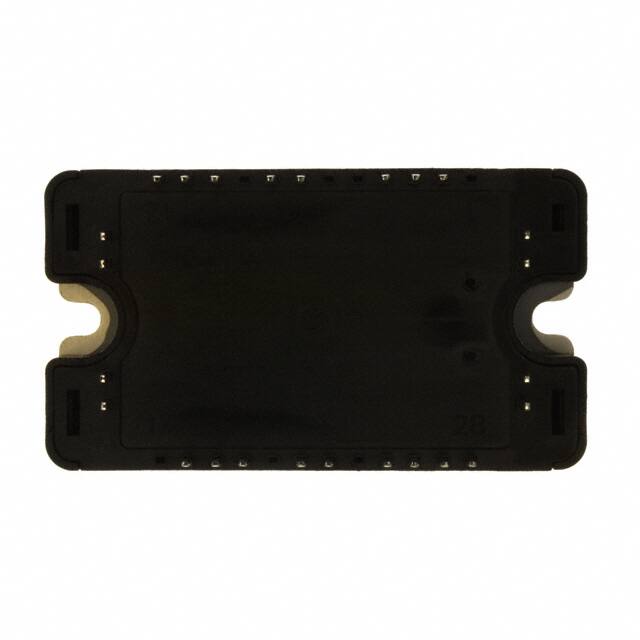

APTCV90TL12T3GIGBT MODULE 1200V 80A 280W SP3 |
2,254 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | Trench Field Stop | Three Level Inverter - IGBT, FET | 1200 V | 80 A | 280 W | 2.2V @ 15V, 50A | 1 mA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGFQ25H120T2GIGBT MODULE 1200V 40A 227W SP2 |
5,500 | - |
|
Datasheet | - | SP2 | Bulk | Active | NPT and Fieldstop | Full Bridge | 1200 V | 40 A | 227 W | 2.1V @ 15V, 25A | 250 µA | 2.02 nF @ 25 V | Standard | Yes | - | Through Hole | SP2 |
