IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGF90TDU60PGIGBT MODULE 600V 110A 416W SP6P |
3,424 | - |
|
Datasheet | - | SP6 | Bulk | Obsolete | NPT | Triple, Dual - Common Source | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT100TA60PGIGBT MODULE 600V 150A 340W SP6P |
9,021 | - |
|
Datasheet | - | SP6 | Bulk | Obsolete | Trench Field Stop | Three Phase | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGF400U120D4GIGBT MODULE 1200V 510A 2500W D4 |
4,428 | - |
|
Datasheet | - | D4 | Bulk | Obsolete | NPT | Single | 1200 V | 510 A | 2500 W | 3.7V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|

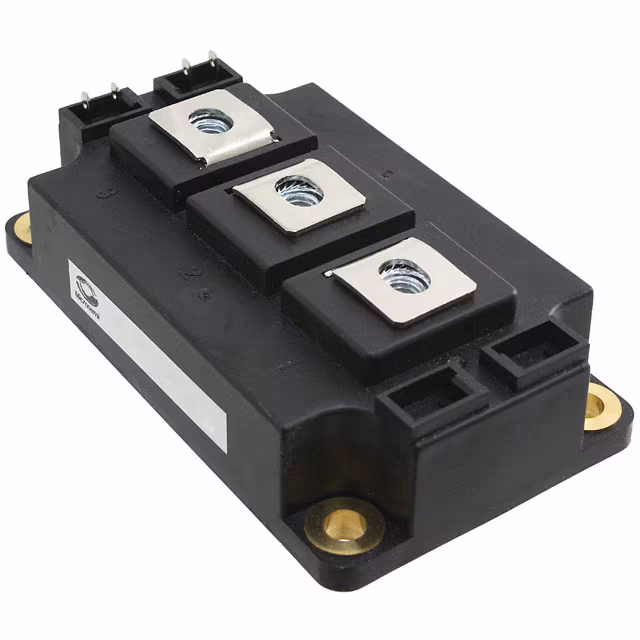

APTGF300A120D3GIGBT MODULE 1200V 420A 2100W D3 |
9,097 | - |
|
Datasheet | - | D-3 Module | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 420 A | 2100 W | 3.7V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | - | Chassis Mount | D3 |
|
|
APTGT450DU60GIGBT MODULE 600V 550A 1750W SP6 |
2,402 | - |
|
Datasheet | - | SP6 | Bulk | Obsolete | Trench Field Stop | Dual, Common Source | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APT30GP60JDQ1IGBT MODULE 600V 67A 245W ISOTOP |
2,698 | - |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 67 A | 245 W | 2.7V @ 15V, 30A | 500 µA | 3.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF165A60D1GIGBT MODULE 600V 230A 781W D1 |
6,691 | - |
|
Datasheet | - | D1 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 230 A | 781 W | 2.45V @ 15V, 200A | 250 µA | 9 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
APTGT100A120D1GIGBT MODULE 1200V 150A 520W D1 |
5,355 | - |
|
Datasheet | - | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 520 W | 2.1V @ 15V, 100A | 3 mA | 7 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT150H170GIGBT MODULE 1700V 250A 890W SP6 |
8,321 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT225DA170GIGBT MODULE 1700V 340A 1250W SP6 |
7,539 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
